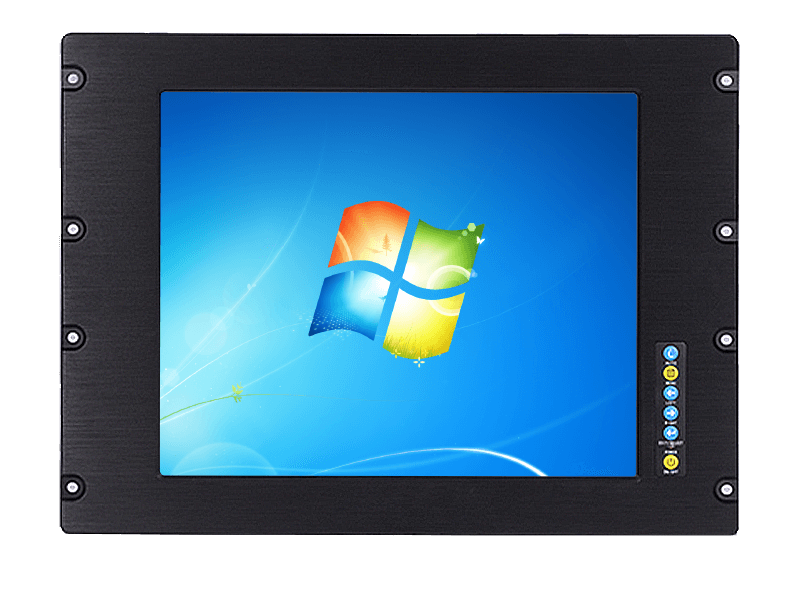

| Model | TPM-R8150 | TPM-R8170 | TPM-R8190 | |
| General Specifications | Control Button | OSD control keys on the rear panel, contrast ratio/brightness adjustable | OSD control keys on the rear panel, contrast ratio/brightness adjustable | OSD control keys on the rear panel, contrast ratio/brightness adjustable |
| Dimension(W×H×D) | 482.6mm×354.8mm×50mm | 482.6mm×354.8mm×50mm | 482.6mm×354.8mm×60mm | |
| Cutout Dimensions(W×H) | — | — | — | |
| Housing | Aluminum milled panel, Sheet metal rear cabinet | Aluminum milled panel, Sheet metal rear cabinet | Aluminum milled panel, Sheet metal rear cabinet | |
| Mounting Method | Standard 19-inch rack-mounted | Standard 19-inch rack-mounted | Standard 19-inch rack-mounted | |
| Power Input | DC 12V Input | DC 12V Input | DC 12V Input | |
| Power Consumption | 4W | 4.8W | 7.6W | |
| Display Interface | VGA&HDMI(DVI Optional) | VGA&HDMI(DVI Optional) | VGA&HDMI(DVI Optional) | |
| Net Weight | 3.85kg | 4.75kg | 5.5kg | |
| LCD | Screen Type | 15" XGA TFT | 17" SXGA TFT | 19" SXGA TFT |
| Resolution | 1024×768 | 1280×1024 | 1280×1024 | |
| Max. Colors | 16.7MB | 16.7MB | 16.7MB | |
| Display Area(W×H) | 304.1mm×228.1mm | 337.9mm×270.3mm | 376.3mm×301.1mm | |
| Backlight | WLED | WLED | WLED | |
| Pixel Pitch | 0.297×0.297 | 0.264×0.264 | 0.294×0.294 | |
| Brightness | 350cd/m² | 250cd/m² | 350cd/m² | |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | |
| View Angle(L/R/T/B) | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 | |
| Touch Screen | Touch Screen Type | Resistive touch screen | Resistive touch screen | Resistive touch screen |
| Light Transmittance | ≥78% | ≥78% | ≥78% | |
| Controller | USB/RS232 Interface | USB/RS232 Interface | USB/RS232 Interface | |
| Operation System | Windows7, Windows8, Windows10, Linux | Windows7, Windows8, Windows10, Linux | Windows7, Windows8, Windows10, Linux | |
| Response Time | <15ms | <15ms | <15ms | |
| Touch Lifespan | 100g/1000000times | 100g/1000000times | 100g/1000000times | |
| Stroke Life | 100g/1000000times | 100g/1000000times | 100g/1000000times | |
| Surface Hardness | ≥3H | ≥3H | ≥3H | |
| Environment Parameters | Working Temp. | -20~60℃ | -20~60℃ | -20~60℃ |
| Storage Temp. | -20~70℃ | -20~70℃ | -20~70℃ | |
| Relative Humidity | 10-90%(No condensing) | 10-90%(No condensing) | 10-90%(No condensing) | |
| Vibration | 5~500Hz, 1.5G, 0.15mm | 5~500Hz, 1.5G, 0.15mm | 5~500Hz, 1.5G, 0.15mm | |
| Shock | 10G, Duration: 11ms | 10G, Duration: 11ms | 10G, Duration: 11ms | |
| EMC | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | |
