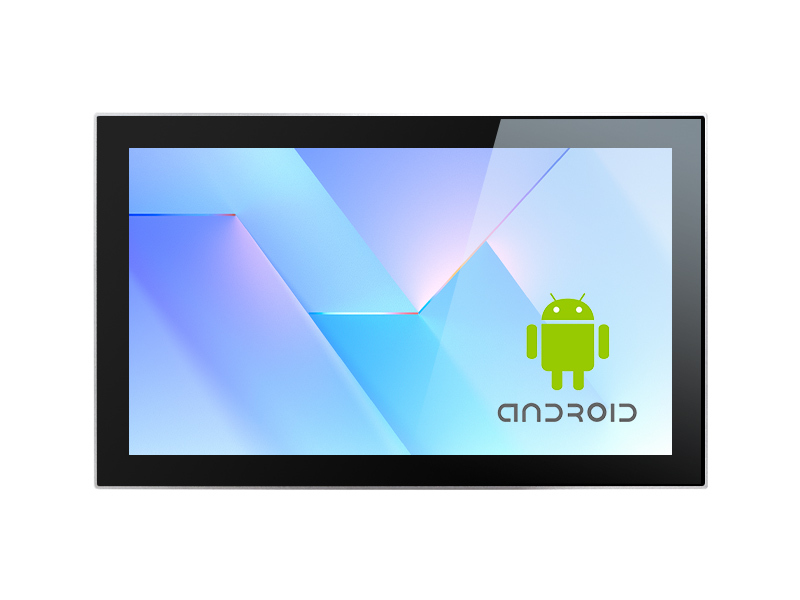

The ARM-L6XXXX series Android industrial tablets feature capacitive touch as their core design and adopt a fanless silent architecture, perfectly integrating technological aesthetics with industrial-grade robustness. The front panel is meticulously crafted using full lamination technology. Its ultra-slim body not only presents a sleek and streamlined appearance but also meets the IP65 protection standard, effectively resisting dust ingress and oil contamination.forming the first solid defense line for the device. The tablet combines durability with portability, maintaining stable operation even in complex environments with alternating high and low temperatures.
Notably, its unique backpack design further enhances protection, effectively achieving anti-static and anti-electromagnetic interference (EMl) performance, ensuring comprehensive reliability from the inside out and significantly extending service life.making it well-equipped to handle various harsh and demanding environmental conditions.In terms of performance, the series is equipped with an RK series low-power processor, delivering efficient operation while achieving outstanding energy savings. It is also outfitted with multi-functional interfaces, flexibly adapting to the connection requirements of different industries and providing users with a convenient and smooth experience.It is undoubtedly a reliable choice that balances aesthetics and performance in complex environments.
| Model | ARM-L6133A | ARM-L6156A | ARM-L6185A | ARM-L6215A | |
| System Parameters | CPU | Quad-core ARM Cortex-A55 processor | Quad-core ARM Cortex-A55 processor | Quad-core ARM Cortex-A55 processor | Quad-core ARM Cortex-A55 processor |
| Main Frequency | 2.0GHz | 2.0GHz | 2.0GHz | 2.0GHz | |
| Memory | Support 2G/4G DDR4 Memory | Support 2G/4G DDR4 Memory | Support 2G/4G DDR4 Memory | Support 2G/4G DDR4 Memory | |
| Storage | 8GB/16GB/32GB eMMC Storage | 8GB/16GB/32GB eMMC Storage | 8GB/16GB/32GB eMMC Storage | 8GB/16GB/32GB eMMC Storage | |
| Decoding Performance | Supports video formats including MPEG1/MPEG2/MPEG4/H.264/H.265/WMV/MKV/TS/FLV, and image formats including JPG/JPEG/BMP/PNG | Supports video formats including MPEG1/MPEG2/MPEG4/H.264/H.265/WMV/MKV/TS/FLV, and image formats including JPG/JPEG/BMP/PNG | Supports video formats including MPEG1/MPEG2/MPEG4/H.264/H.265/WMV/MKV/TS/FLV, and image formats including JPG/JPEG/BMP/PNG | Supports video formats including MPEG1/MPEG2/MPEG4/H.264/H.265/WMV/MKV/TS/FLV, and image formats including JPG/JPEG/BMP/PNG | |
| Interface | Network | RJ45*2 | RJ45*2 | RJ45*2 | RJ45*2 |
| USB | USB3.0*1、USB2.0*4 | USB3.0*1、USB2.0*4 | USB3.0*1、USB2.0*4 | USB3.0*1、USB2.0*4 | |
| Serial Port | RS232*2 (RS485/RS232 Either one) | RS232*2 (RS485/RS232 Either one) | RS232*2 (RS485/RS232 Either one) | RS232*2 (RS485/RS232 Either one) | |
| Other Interfaces | DC IN、HDMI、SIM、GPIO、CAN、TF、AUDIO3.5MM | DC IN、HDMI、SIM、GPIO、CAN、TF、AUDIO3.5MM | DC IN、HDMI、SIM、GPIO、CAN、TF、AUDIO3.5MM | DC IN、HDMI、SIM、GPIO、CAN、TF、AUDIO3.5MM | |
| Physical Features | Dimension(W×H×D) | 339.1mm×224.2mm×47mm | 388.4mm×237.6mm×47mm | 454.3mm×299mm×47mm | 526.2mm×317.7mm×47mm |
| Cutout Dimension(W×H) | 324mm×210mm | 374mm×224mm | 440mm×282mm | 511mm×308mm | |
| Mounting Method | Embedded & VESA Mounting | Embedded & VESA Mounting | Embedded & VESA Mounting | Embedded & VESA Mounting | |
| Cooling Method | Fanless Cooling | Fanless Cooling | Fanless Cooling | Fanless Cooling | |
| Net Weight | 2.5KG | 2.6KG | 2.4KG | 5.2KG | |
| Power | Power Input | DC 12V Input | DC 12V Input | DC 12V Input | DC 12V Input |
| Power Consumption | 15W | 16W | 20W | 18W | |
| Operating System | Operating System | Linux、Android12 | Linux、Android12 | Linux、Android12 | Linux、Android12 |
| LCD | Screen Type | 13.3" FullHD TFT | 15.6" FullHD TFT | 18.5" Full HD TFT | 21.5" Full HD TFT |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | |
| Max. Color | 16.7MB | 16.7MB | 16.7MB | 16.7MB | |
| Active Area(W×H) | 293.8mm×165.2mm | 345.2mm×194.6mm | 409mm×230mm | 477.1mm×268.8mm | |
| Backlight | WLED | WLED | WLED | WLED | |
| Pixel Pitch | 0.051×0.153 | 0.17925×0.17925 | 0.213×0.213 | 0.08265×0.24795 | |
| Brightness | 350cd/m² | 400cd/m² | 300cd/m² | 250cd/m² | |
| Contrast Ratio | 1200:1 | 1000:1 | 1000:1 | 1000:1 | |
| View Angle(L/R/T/B) | 80/80/85/85 | 85/85/85/85 | 89/89/89/89 | 89/89/89/89 | |
| Touch Screen | Touch Screen Type | Multi-touch Capacitive screen | Multi-touch Capacitive screen | Multi-touch Capacitive screen | Multi-touch Capacitive screen |
| Transmittance | >85% | >85% | >85% | >85% | |
| Controller | Capacitive Touch Controller | Capacitive Touch Controller | Capacitive Touch Controller | Capacitive Touch Controller | |
| Driver Support | Linux, Android12 | Linux, Android12 | Linux, Android12 | Linux, Android12 | |
| Response Time | <5ms | <5ms | <5ms | <5ms | |
| Surface Hardness | 7H | 7H | 7H | 7H | |
| Environmental Parameters | Working Temp | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Storage Temp | -20~70℃ | -20~70℃ | -20~70℃ | -20~70℃ | |
| Relative Humidity | 10~90%(No Condensing) | 10~90%(No Condensing) | 10~90%(No Condensing) | 10~90%(No Condensing) | |
| Vibration | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | |
| Shock | 10G, Duration:11ms | 10G, Duration:11ms | 10G, Duration:11ms | 10G, Duration:11ms | |
| EMC | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | |
| Waterproof Grade | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating |
