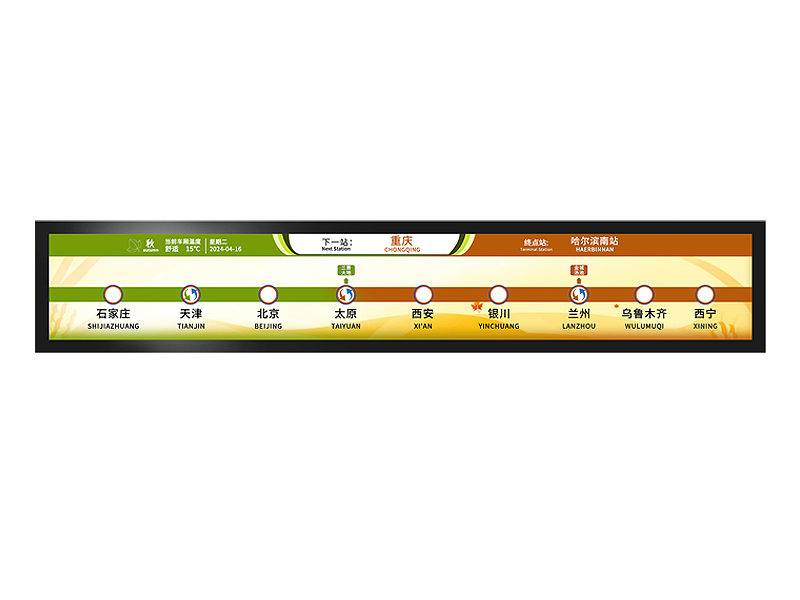

Built for transit interiors, the PISD-DT366 sits within a wider family of rail vehicle products engineered to the EN50155 standard, and it works as a dynamic map display that shows station layouts, facility locations, and carriage crowding on a 36.6-inch 1920 × 290 stretched panel.
The PISD-DT366 combines a 36.6-inch stretched screen with a 1920 × 290 resolution to present route maps, upcoming stations, transfer guidance, and carriage information in one continuous view. Its wide format is suited to installation above train doors and other transit interiors where a conventional screen would use space less efficiently.
| Display size | 36.6-inch stretched panel |
|---|---|
| Resolution | 1920 × 290 |
| Brightness | 1000 cd/m² |
| Viewing angle | 89° in all directions |
| Rail environment | EN50155 testing standard; EN50121-3-2 compliance; IP54 front panel |
| Platform & connections | Linux or Android; M12-D and D-Sub9 connectors; configurable power interface |
Connector definitions, operating system, and other configuration details should be confirmed against the intended vehicle installation.
Keep adjacent product options together for a faster catalog comparison.
The IPD-L156 / IPD-L170 / IPD-L190 / IPD-L185 / IPD-L21 front panel complies with IP65 protection rating, which prevents ingress of rainwater, dust and oil stains. 5 series are industrial operation…
View product
The PISD-DT430-4K is a 43-inch high-resolution dynamic map display offering EN50155 compliance and IP54 protection, ideal for rail transit environments. Our dynamic map display manufacturer ensures…
View productthe pisd-dt366 is a 36.6-inch rail display with a 1920 × 290 stretched panel, built to show dynamic maps, facility locations, and carriage crowding information inside metro and train cars.
the screen offers 1920 × 290 resolution, 16.7 million colors with 72% ntsc coverage, 1000 cd/m² brightness, an 89° viewing angle in all directions, and a typical 11 ms response time.
it runs on a quad-core arm cortex a55 processor at 2.0 ghz, with 2gb or 4gb ddr4 memory (2gb as default) and 8gb, 16gb, 32gb, or 64gb emmc storage (8gb as default).
the pisd-dt366 meets the en50155 testing standard and en50121-3-2 compliance, carries an ip54-rated front panel, and its circuit board receives tri-proof treatment.
the display supports linux and android, supports by pass network cascading technology, and provides a customizable power interface plus m12-d and d-sub9 connectors whose definitions can be adjusted as needed.
contact the supplier through the product page or the contact page with your route, quantity, and interface requirements, so the software can be customized to your communication protocol and panel options such as ag or ar coatings can be confirmed.
