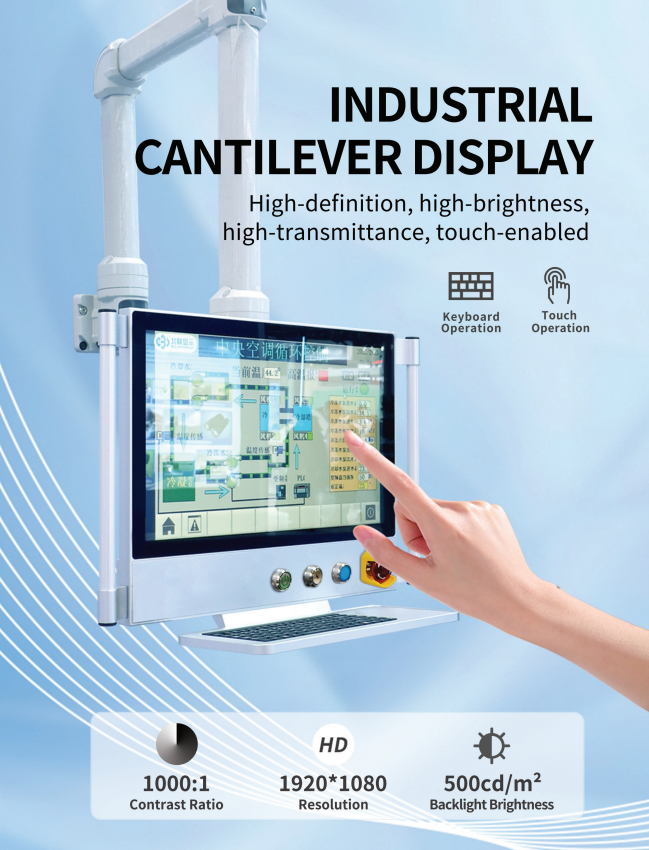

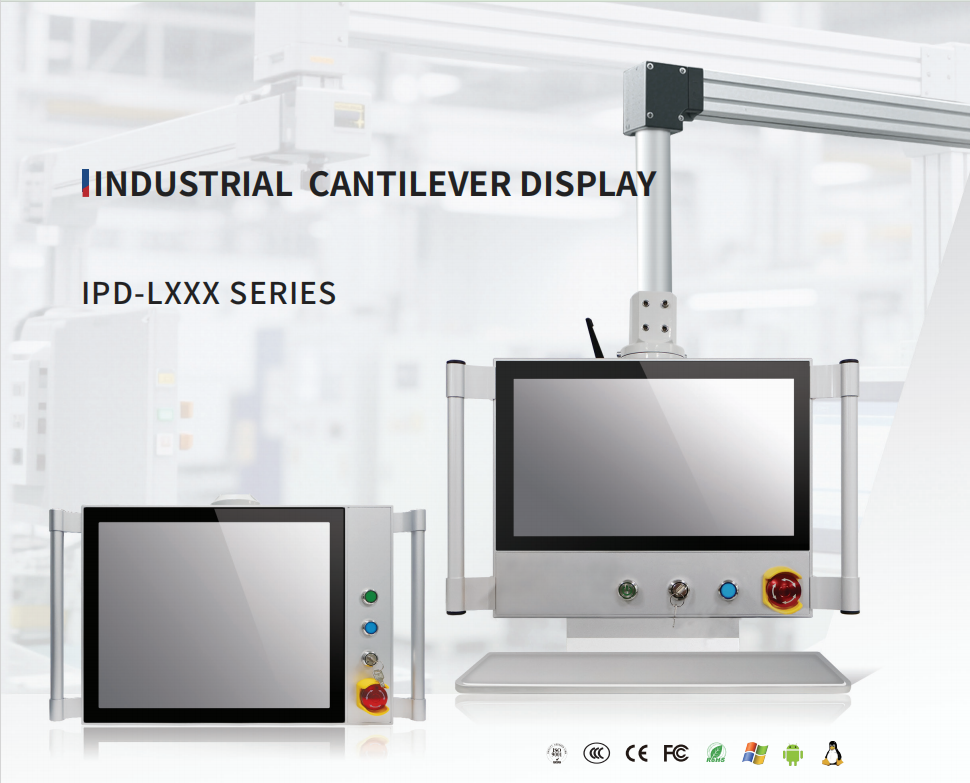

The IPD-L156 / IPD-L170 / IPD-L190 / IPD-L185 / IPD-L21 front panel complies with IP65 protection rating, which prevents ingress of rainwater, dust and oil stains. 5 series are industrial operation panels designed with capacitive touch screens. Featuring an attractive appearance, sturdiness and durability, as well as resistance to high and low temperatures, the units are equipped with effective electrostatic protection and anti-electromagnetic interference performance to ensure product reliability and service life.
Fitted with industrial-grade operation buttons, they are suitable for various automated machinery such as machine tools, automotive equipment, food processing machinery and pharmaceutical equipment, as well as testing equipment on automated production lines, meeting application requirements across different industries.
A built-in USB docking station allows multiple USB devices to be connected via a single USB input, reducing the amount of wiring inside square tubes during on-site installation, facilitating construction and improving data transmission stability.
Product Features:
1. IP65 Protection Grade
The front panel complies with IP65 protection rating, preventing rainwater and dust from entering the cabinet structure constructed with
aluminum alloy and hot-dip galvanized steel, ensuring excellent heat dissipation and robust durability of the product.
2. Operation buttons and switch indicator keys can be customized
Both operation buttons and switch indicator keys can be tailored according to the requirements of the applied equipment.
3. Small size & high integration：Perfectly integrates cantilever control operation with industrial displays
4. Touch, keyboard, mouse, and buttons can be operated simultaneously
Touch, keyboard, mouse, and buttons can be operated at the same time, which is convenient and efficient
5. Multiple installation methods：Embedded installation, cantilever installation
6. Wide-temperature operation
The unit supports an operating temperature range of -20℃ to 60℃, enabling long-time operation and meeting the requirements
of most industries and application scenarios
Product Parameters:
| Model | IPD-L170 | IPD-L190 | IPD-L156 | |
| General Spec | Control Button | OSD control keys on the rear panel, contrast ratio/brightness adjustable | OSD control keys on the rear panel, contrast ratio/brightness adjustable | OSD control keys on the rear panel, contrast ratio/brightness adjustable |
| Dimension (W×H×D) | 568mm × 327.5mm × 125.5mm | 603mm × 355.5mm × 125.5mm | 490.5mm × 326.5mm × 125.5mm | |
| Cutout Dimension (W×H) | — | — | — | |
| Housing | Aluminum milled front panel, sheet metal rear housing | Aluminum milled front panel, sheet metal rear housing | Aluminum milled front panel, die-cast rear housing | |
| Mounting Method | Installation of boom type (switchable support arm type) | Installation of boom type (switchable support arm type) | Jib-mounted (toggle-arm-mounted) installation | |
| Weight | 12.5kg | 16.5kg | 5.64KG | |
| Cantilever Direction | Vertical up/down | Vertical up/down | Vertical up / down | |
| Operation Keyboard | optional | optional | optional | |
| Operation Button | USB expansion interface and various control buttons | USB expansion interface and various control buttons | USB expansion interface and various control buttons | |
| Display Interface | HDMI/DP/Differential Multiple Signal Input | HDMI/DP/Differential Multiple Signal Input | HDMI/DP/Differential Multiple Signal Input | |
| Power Input | DC 12V Input | DC 12V Input | DC 12V Input | |
| LCD | Screen Type | 17" SXGA TFT | 19" SXGA TFT | 15.6" Full HD TFT |
| Resolution | 1280×1024 | 1280×1024 | 1920×1080 | |
| Max. Color | 16.7MB | 16.7MB | 16.7MB | |
| Display Area (W×H) | 335.6mm × 267.6mm | 377.6mm × 302.4mm | 345mm × 194.5mm | |
| Backlight | WLED | WLED | WLED | |
| Pixel Pitch | 0.246 × 0.246 | 0.294 × 0.294 | 0.17925 × 0.17925 | |
| Brightness | 250cd/m² | 250cd/m² | 400cd/m² | |
| Contrast Ratio | 1000：1 | 1000：1 | 1000：1 | |
| View Angle (L/R/T/B) | 85 / 85 / 80 / 80 | 85 / 85 / 80 / 80 | 85 / 85 / 85 / 85 | |
| Touch Screen | Touch Screen Type | Multi-touch capacitive touch screen | Multi-touch capacitive touch screen | Multi-touch capacitive touch screen |
| Light Transmittance | > 85% | > 85% | > 85% | |
| Controller | USB Interface | USB Interface | USB Interface | |
| Operating System | Support Win7, Win8, Win10, (Linux/KylinOS, Android touch drivers require version adaptation) | Support Win7, Win8, Win10, (Linux/KylinOS, Android touch drivers require version adaptation) | Support Win7, Win8, Win10, (Linux/KylinOS, Android touch drivers require version adaptation) | |
| Response Time(Stylus) | < 5ms | < 5ms | < 5ms | |
| Hardness | 7H | 7H | 7H | |
| Environment Parameters | Working Temp | -20~60°C | -20~60°C | -20~60°C |
| Storage Temp | -20~70°C | -20~70°C | -20~70°C | |
| Relative Humidity | 10~90%(No Condensing) | 10~90%(No Condensing) | 10~90%(No Condensing) | |
| Vibration | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | |
| Shock | 10G,Duration:11ms | 10G,Duration:11ms | 10G, Duration:11ms | |
| EMC | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | |
| Waterproof Rating | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | |
| Model | IPD-L185 | IPD-L215 | |
| General Spec | Control Button | OSD control keys on the rear panel, contrast ratio/brightness adjustable | OSD control keys on the rear panel, contrast ratio/brightness adjustable |
| Dimension (W×H×D) | 556.5mm × 386mm × 125.5mm | 624mm × 402.5mm × 125.5mm | |
| Cutout Dimension (W×H) | — | — | |
| Housing | Aluminum milled front panel, die-cast rear housing | Aluminum milled front panel, die-cast rear housing | |
| Mounting Method | Jib-mounted (toggle-arm-mounted) installation | Jib-mounted (toggle-arm-mounted) installation | |
| Weight | 7.3KG | 8.6KG | |
| Cantilever Direction | Vertical up / down | Vertical up / down | |
| Operation Keyboard | optional | optional | |
| Operation Button | USB expansion interface and various control buttons | USB expansion interface and various control buttons | |
| Display Interface | HDMI/DP/Differential Multiple Signal Input | HDMI/DP/Differential Multiple Signal Input | |
| Power Input | DC 12V Input | DC 12V Input | |
| LCD | Screen Type | 18.5" Full HD TFT | 21.5" Full HD TFT |
| Resolution | 1920×1080 | 1920×1080 | |
| Max. Color | 16.7MB | 16.7MB | |
| Display Area (W×H) | 409mm × 230mm | 477mm × 268.5mm | |
| Backlight | WLED | WLED | |
| Pixel Pitch | 0.213 × 0.213 | 0.24795 × 0.24795 | |
| Brightness | 300cd/m² | 250cd/m² | |
| Contrast Ratio | 1000：1 | 1000：1 | |
| View Angle (L/R/T/B) | 85 / 85 / 85 / 85 | 89 / 89 / 89 / 89 | |
| Touch Screen | Touch Screen Type | Multi-touch capacitive touch screen | Multi-touch capacitive touch screen |
| Light Transmittance | > 85% | > 85% | |
| Controller | USB Interface | USB Interface | |
| Operating System | Support Win7, Win8, Win10, (Linux/KylinOS, Android touch drivers require version adaptation) | Support Win7, Win8, Win10, (Linux/KylinOS, Android touch drivers require version adaptation) | |
| Response Time(Stylus) | < 5ms | < 5ms | |
| Hardness | 7H | 7H | |
| Environment Parameters | Working Temp | -20~60°C | -20~60°C |
| Storage Temp | -20~70°C | -20~70°C | |
| Relative Humidity | 10~90%(No Condensing) | 10~90%(No Condensing) | |
| Vibration | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | |
| Shock | 10G, Duration:11ms | 10G, Duration:11ms | |
| EMC | CE/FCC Class B | CE/FCC Class B | |
| Waterproof Rating | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | |
