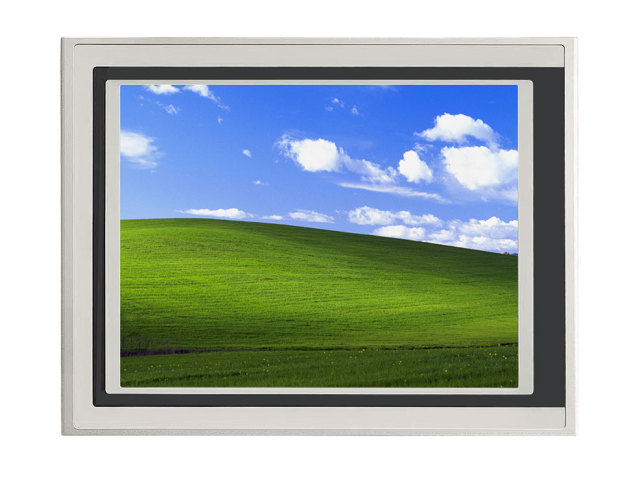

Name: TPM-R6 Series-Backpack style
Brand: Wuhan Beilian Display Tech Co., Ltd
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Features:

Available in multiple sizes including 7", 10.1", 11.6", 10.4", 12.1", 13.3", 15", 15.6", 17", 18.5", 19", and 21.5".
A wide range of industrial display products with capacitive and resistive touch options.
Supports various signal interfaces: VGA, DVI, DP, and HDMI.
Installation methods include embedded, rack-mounted, VESA mount, and others.
Featuring excellent stability and reliability, they are suitable for various industrial on-site applications.
Wide Temperature Operation: -20°~60°

Technical Parameters:

Model		TPM-R6104	TPM-R6121	TPM-R6150
General Specifications	Control Button	OSD control keys on the rear panel, contrast ratio/brightness adjustable	OSD control keys on the rear panel, contrast ratio/brightness adjustable	OSD control keys on the rear panel, contrast ratio/brightness adjustable
	Dimension(W×H×D)	292.4mm×220.9mm×43mm	316.9mm×248.1mm×43mm	383mm×297.6mm×43mm
	Cutout Dimensions(W×H)	276mm×209mm	301mm×236mm	366mm×285mm
	Housing	Aluminum milled panel, Sheet metal rear cabinet, Anodized coating, Ground isolation protection	Aluminum milled panel, Sheet metal rear cabinet, Anodized coating, Ground isolation protection	Aluminum milled panel, Sheet metal rear cabinet, Anodized coating, Ground isolation protection
	Mounting Method	Embedded & VESA Mounting	Embedded & VESA Mounting	Embedded & VESA Mounting
	Power Input	DC 12V Input	DC 12V Input	DC 12V Input
	Power Consumption	4W	4.8W	7.6W
	Display Interface	VGA&HDMI(DVI Optional)	VGA&HDMI(DVI Optional)	VGA&HDMI(DVI Optional)
	Net Weight	2.26kg	2.55kg	3.85kg
LCD	Screen Type	10.4" SVGA TFT	12.1" XGA TFT	15" XGA TFT
	Resolution	800×600	1024×768	1024×768
	Max. Colors	16.7MB	16.7MB	16.7MB
	Display Area(W×H)	213mm×160.2mm	246.9mm×185.7mm	304.1mm×228.1mm
	Backlight	WLED	WLED	WLED
	Pixel Pitch	0.264×0.264	0.240×0.240	0.297×0.297
	Brightness	350cd/m²	500cd/m²	350cd/m²
	Contrast Ratio	800:1	1200:1	1000:1
	View Angle(L/R/T/B)	70/70/60/70	86/86/86/86	89/89/89/89
Touch Screen	Touch Screen Type	Resistive touch screen	Resistive touch screen	Resistive touch screen
	Light Transmittance	≥78%	≥78%	≥78%
	Controller	USB/RS232 Interface	USB/RS232 Interface	USB/RS232 Interface
	Operation System	Windows7, Windows8, Windows10, Linux	Windows7, Windows8, Windows10, Linux	Windows7, Windows8, Windows10, Linux
	Response Time	<15ms	<15ms	<15ms
	Touch Lifespan	100g/1000000times	100g/1000000times	100g/1000000times
	Stroke Life	100g/1000000times	100g/1000000times	100g/1000000times
	Surface Hardness	≥3H	≥3H	≥3H
Environment Parameters	Working Temp.	-20~60℃	-20~60℃	-20~60℃
	Storage Temp.	-20~70℃	-20~70℃	-20~70℃
	Relative Humidity	10-90%(No condensing)	10-90%(No condensing)	10-90%(No condensing)
	Vibration	5~500Hz, 1.5G, 0.15mm	5~500Hz, 1.5G, 0.15mm	5~500Hz, 1.5G, 0.15mm
	Shock	10G, Duration: 11ms	10G, Duration: 11ms	10G, Duration: 11ms
	EMC	CE/FCC Class B	CE/FCC Class B	CE/FCC Class B

Model		TPM-R6170	TPM-R6190
General Specifications	Control Button	OSD control keys on the rear panel, contrast ratio/brightness adjustable	OSD control keys on the rear panel, contrast ratio/brightness adjustable
	Dimension(W×H×D)	414.9mm×340.6mm×45mm	452.4mm×368.1mm×45mm
	Cutout Dimensions(W×H)	399mm×329mm	436mm×356mm
	Housing	Aluminum milled panel, Sheet metal rear cabinet; Anodized coating, Ground isolation protection	Aluminum milled panel, Sheet metal rear cabinet; Anodized coating, Ground isolation protection
	Mounting Method	Embedded & VESA Mounting	Embedded & VESA Mounting
	Power Input	DC 12V Input	DC 12V Input
	Power Consumption	7.2W	8W
	Display Interface	VGA&HDMI(DVI Optional)	VGA&HDMI(DVI Optional)
	Net Weight	4.75kg	5.5kg
LCD	Screen Type	17" SXGA TFT	19" SXGA TFT
	Resolution	1280×1024	1280×1024
	Max. Colors	16.7MB	16.7MB
	Display Area(W×H)	338mm×270mm	377mm×303mm
	Backlight	WLED	WLED
	Pixel Pitch	0.264×0.264	0.294×0.294
	Brightness	250cd/m²	350cd/m²
	Contrast Ratio	1000:1	1000:1
	View Angle(L/R/T/B)	85/85/80/80	85/85/80/80
Touch Screen	Touch Screen Type	Resistive touch screen	Resistive touch screen
	Light Transmittance	≥78%	≥78%
	Controller	USB/RS232 Interface	USB/RS232 Interface
	Operation System	Windows7, Windows8, Windows10, Linux	Windows7, Windows8, Windows10, Linux
	Response Time	<15ms	<15ms
	Touch Lifespan	100g/1000000times	100g/1000000times
	Stroke Life	100g/1000000times	100g/1000000times
	Surface Hardness	≥3H	≥3H
Environment Parameters	Working Temp.	-20~60℃	-20~60℃
	Storage Temp.	-20~70℃	-20~70℃
	Relative Humidity	10-90%(No condensing)	10-90%(No condensing)
	Vibration	5~500Hz, 1.5G, 0.15mm	5~500Hz, 1.5G, 0.15mm
	Shock	10G, Duration: 11ms	10G, Duration: 11ms
	EMC	CE/FCC Class B	CE/FCC Class B
