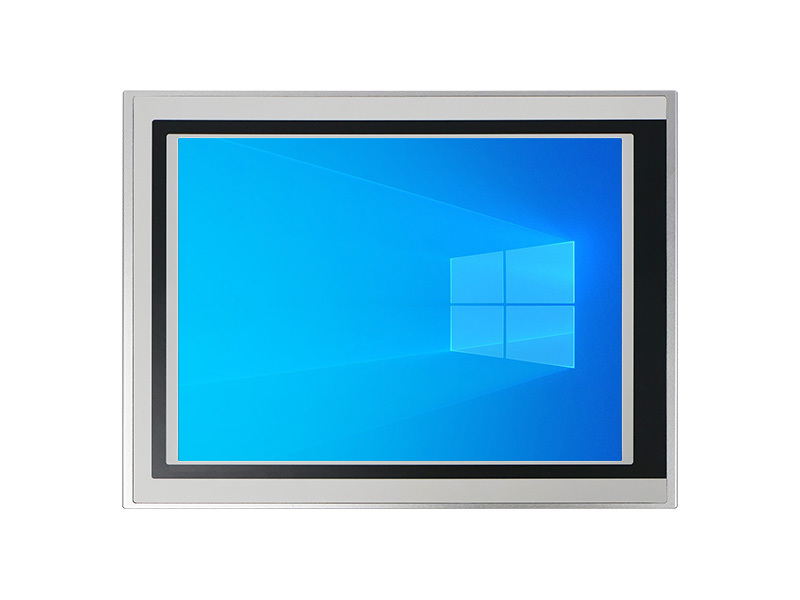

The TPC-RXXXX series industrial panel PC innovatively integrates resistive touch technology with PET film material, creating an operating interface that features both precise touch control and outstanding durability. Adopting a fanless design coupled with a large-area aluminum fin active cooling system, it achieves a perfect balance between silent operation and high-efficiency heat dissipation. Furthermore, it effectively blocks dust intrusion, building a solid barrier for the stable operation of the device.
The body design combines aesthetics and practicality with a sleek and attractive appearance and tough, damage-resistant materials. While remaining compact and lightweight, it boasts strong environmental adaptability — capable of handling extreme working conditions with alternating high and low temperatures, as well as complex interference sources such as static electricity and electromagnetic interference with ease. With comprehensive protection design, the whole machine fundamentally ensures operational reliability and significantly extends service life, enabling stable performance continuously in various harsh and complex industrial environments.
In addition, the series comes standard with diversified interfaces, flexibly adapting to the connection needs of different industries, bringing users a convenient and smooth experience, making it a reliable choice combining performance and adaptability for industrial scenarios.
① A variety of CPU options are available, including Intel® Celeron® J1900 / Intel® Celeron® 6412 / Intel® Core® i5-1035G1 / Intel® Core® i5-7500T/ Intel® Alder Lake-N Series Processor N95.
2. Multiple installation methods：Embedded installation，VESA wall-mounted.
3. 4-wire precision resistive touch screen:
Equipped with a 4-wire precision resistive touch screen, it is waterproof, dustproof, oil-resistant, and features a long service life.
4. Wide Temperature Operation:
The unit can operate within a temperature range of -20℃~60℃, supporting long-time operation and meeting the requirements of most industries and regions.
5. Abundant multifunctional interfaces and multi-system support:
Featuring RS232, RS485 serial communication, GPIO, HDMI, VGA, LAN, USB, AUDIO, WIFI/4G wireless networking Supports domestic version supports Kylin OS.
6. Rugged aluminum alloy profile and galvanized steel enclosure:
Constructed with aluminum alloy profiles and galvanized steel sheets to ensure excellent heat dissipation and robustness. The fully enclosed design prevents dust intrusion.
Technical Parameters:
| Model | TPC-R150H | TPC-R170H | TPC-R190H | |
| System Parameters | CPU | Supports Intel® 6th/7th/8th/9th Gen. i3/i5/i7/i9 Processor | Supports Intel® 6th/7th/8th/9th Gen. i3/i5/i7/i9 Processor | Supports Intel® 6th/7th/8th/9th Gen. i3/i5/i7/i9 Processor |
| Main Frequency | 2.5-3.5GHZ | 2.5-3.5GHZ | 2.5-3.5GHZ | |
| Memory | 2*SODMM, DDR4-2133/2400/2500, up to 64GB | 2*SODMM, DDR4-2133/2400/2500, up to 64GB | 2*SODMM, DDR4-2133/2400/2500, up to 64GB | |
| Storage | Msata 128G/256/512G/1T | Msata 128G/256/512G/1T | Msata 128G/256/512G/1T | |
| Interface | Network | 2 * RJ45 | 2 * RJ45 | 2 * RJ45 |
| USB | 4 * USB3.0 | 4 * USB3.0 | 4 * USB3.0 | |
| Serial Port | 2*RS232/RS422/RS485, 2*RS232 | 2*RS232/RS422/RS485, 2*RS232 | 2*RS232/RS422/RS485, 2*RS232 | |
| Expansion Slot | 1" Mini-PCle slot, expandable for WiFi/4G wireless communication | 1" Mini-PCle slot, expandable for WiFi/4G wireless communication | 1" Mini-PCle slot, expandable for WiFi/4G wireless communication | |
| Other Interfaces | Power Switch,2*DCIN | Power Switch,2*DCIN | Power Switch,2*DCIN | |
| Physical Features | Dimension (W×H×D) | 382.9mm×297.6mm×73mm | 414.9mm×340.6mm×75mm | 452.4mm×368.1mm×75mm |
| Cutout Dimension (W×H) | 366mm×285mm | 399mm×329mm | 436mm×356mm | |
| Mounting Method | Embedded & VESA Mounting | Embedded & VESA Mounting | Embedded & VESA Mounting | |
| Cooling Mehod | Rear chassis heat dissipation aluminum fins, farless cooing | Rear chassis heat dissipation aluminum fins, farless cooing | Rear chassis heat dissipation aluminum fins, farless cooing | |
| Net Weight | 6.8KG | 6.8KG | 7.8KG | |
| Power | Power Input | Supports wide voltage input of DC 9-36V | Supports wide voltage input of DC 9-36V | Supports wide voltage input of DC 9-36V |
| Power Consumption | No-Load Power Consumption 25.6w Full-Load Power Consumption: 69.5W | No-Load Power Consumption: 22W FulfLed Power Consumption: 65W | No-Load Power Consumption: 16.8W Full-Load Power Consumption : 72.5W | |
| Operating System | Operating System | Windows10 | Windows10 | Windows10 |
| LCD | Screen Type | 15" XGA TFT | 17"SXGA TFT | 19"SXGA TFT |
| Resolution | 1024×768 | 1280×1024 | 1280×1024 | |
| Max. Color | 16.7MB | 16.7MB | 16.7MB | |
| Active Area (W×H) | 304.1mm×228.1mm | 337.9mm×270.3mm | 376.3mm×301.1mm | |
| Backlight | WLED | WLED | WLED | |
| Pixel Pitch | 0.297×0.297 | 0.264×0.264 | 0.294×0.294 | |
| Brightness | 350cd/m² | 250cd/m² | 350cd/m² | |
| Contrast Ratio | 1000 : 1 | 1000 : 1 | 1000 : 1 | |
| View Angle(L/R/T/B) | 89 / 89 / 89 / 89 | 85 / 85 / 80 / 80 | 85 / 85 / 80 / 80 | |
| Touch Screen | Touch Screen Type | Resistive Touch Screen | Resistive Touch Screen | Resistive Touch Screen |
| Transmittance | ≥78% | ≥78% | ≥78% | |
| Controller | Resistive Touch Controller | Resistive Touch Controller | Resistive Touch Controller | |
| Driver Support | Windows7/8.1/10/11, Linux | Windows7/8.1/10/11, Linux | Windows7/8.1/10/11, Linux | |
| Response Time | < 15ms | < 15ms | < 15ms | |
| Touch Life | 100g/1000000times | 100g/1000000times | 100g/1000000times | |
| Stroke Life | 100g/100000times | 100g/100000times | 100g/100000times | |
| Surface Hardness | ≥3H | ≥3H | ≥3H | |
| Environmental Parameters | Working Temp | -20~60℃ | -20~60℃ | -20~60℃ |
| Storage Temp | -20~70℃ | -20~70℃ | -20~70℃ | |
| Relative Humidity | 10~90%(No Condensing) | 10~90%(No Condensing) | 10~90%(No Condensing) | |
| Vibration | 5~500Hz, 1.5G,0.15mm | 5~500Hz, 1.5G,0.15mm | 5~500Hz, 1.5G,0.15mm | |
| Shock | 10G, Duration: 11ms | 10G, Duration: 11ms | 10G, Duration: 11ms | |
| EMC | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | |
