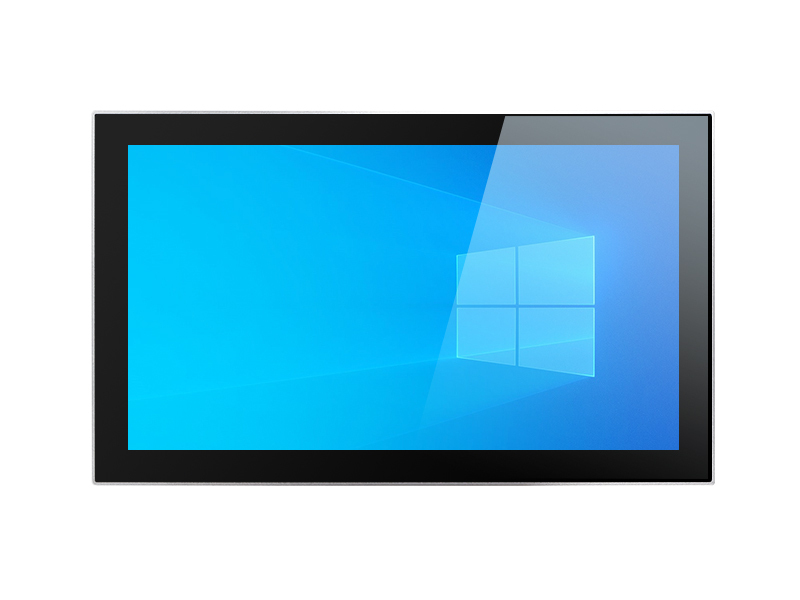

The TPC-LxxxH series industrial panel PC centers on capacitive touch design, adopts a fanless silent architecture, and is equipped with a large-area aluminum fin active heat dissipation solution. While achieving high-efficiency heat dissipation, it can also strictly block dust intrusion, ensuring stable equipment operation from the source. Its appearance combines aesthetic design and industrial characteristics with clean and elegant lines. The chassis is made of sturdy materials, featuring both compactness and portability as well as robust durability.
Even in extreme environments with alternating high and low temperatures, the whole machine can maintain stable performance. Meanwhile, it boasts excellent anti-static and anti-electromagnetic interference capabilities, building a comprehensive reliability defense line for the equipment, greatly extending its service life, and enabling it to easily cope with various complex and demanding industrial scenarios. Furthermore, the series products are equipped with diversified interfaces as standard, flexibly adapting to the connection needs of different industries and bringing users a convenient and efficient operating experience, making them a reliable partner in complex industrial environments.
① Multiple CPU options are available: Intel Celerron® J6412 / Intel® Core™ i5-1035G1 / Intel® Core™ i5-7500T / Intel® Alder Lake-N Series Processor N95, etc.
2. Multiple installation methods：Embedded installation，VESA wall-mounted.
3. 4-wire precision resistive touch screen:
Equipped with a 4-wire precision resistive touch screen, it is waterproof, dustproof, oil-resistant, and features a long service life.
4. Wide Temperature Operation:
The unit can operate within a temperature range of -20℃~60℃, supporting long-time operation and meeting the requirements of most industries and regions.
5. Abundant multifunctional interfaces and multi-system support:
USB, DC IN, 2*RJ45, with expandable WIFI/Bluetooth, supporting Windows 10/Linux
6. Rugged aluminum alloy profile and galvanized steel enclosure:
Constructed with aluminum alloy profiles and galvanized steel sheets to ensure excellent heat dissipation and robustness. The fully enclosed design prevents dust intrusion.
Technical Parameters:
| Model | TPC-L150H | TPC-L170H | TPC-L190H | |
| System Parameters | CPU | Intel 6–9th Gen i3/i5/i7/i9 | Intel 6–9th Gen i3/i5/i7/i9 | Intel 6–9th Gen i3/i5/i7/i9 |
| Main Frequency | 2.5–3.5 GHz | 2.5–3.5 GHz | 2.5–3.5 GHz | |
| Memory | 2×SODIMM DDR4 up to 64GB | 2×SODIMM DDR4 up to 64GB | 2×SODIMM DDR4 up to 64GB | |
| Storage | M.2 128/256/512/1TB | M.2 128/256/512/1TB | M.2 128/256/512/1TB | |
| Interface | Network | 4×RJ45 | 4×RJ45 | 4×RJ45 |
| USB | 4×USB3.0 | 4×USB3.0 | 4×USB3.0 | |
| Serial Port | 2×RS232/422/485 + 2×RS232 | 2×RS232/422/485 + 2×RS232 | 2×RS232/422/485 + 2×RS232 | |
| Expansion Slot | 1×Mini-PCIe (WiFi/4G) | 1×Mini-PCIe (WiFi/4G) | 1×Mini-PCIe (WiFi/4G) | |
| Other Interfaces | Power, 2×DC-IN | Power, 2×DC-IN | Power, 2×DC-IN | |
| Physical Features | Dimension (W×H×D) mm | 356×280×73 | 391.7×323.9×73 | 426.7×351.7×73 |
| Cutout Dimension (W×H) mm | 340×265 | 381×313 | 415×341 | |
| Mounting Method | Embedded / VESA | Embedded / VESA | Embedded / VESA | |
| Cooling | Fanless aluminum fins | Fanless aluminum fins | Fanless aluminum fins | |
| Net Weight (KG) | 6.2 | 6.5 | 7.5 | |
| Power | Power Input | DC 9–36V | DC 9–36V | DC 9–36V |
| Power Consumption (W) | No-load 25.6 / Full-load 69.5 | No-load 22 / Full-load 69 | No-load 26.8 / Full-load 72.5 | |
| Operating System | OS | Windows10 | Windows10 | Windows10 |
| LCD | Screen Type | 15" XGA TFT | 17" SXGA TFT | 19" SXGA TFT |
| Resolution | 1024×768 | 1280×1024 | 1280×1024 | |
| Max. Color | 16.7MB | 16.7MB | 16.7MB | |
| Display Area (W×H) mm | 305.5×229.5 | 338.5×271.3 | 375.0×300.0 | |
| Backlight | WLED | WLED | WLED | |
| Pixel Pitch (mm) | 0.297×0.297 | 0.264×0.264 | 0.2928×0.2928 | |
| Brightness (cd/m²) | 400 | 250 | 250 | |
| Contrast Ratio | 1000:01:00 | 1000:01:00 | 1000:01:00 | |
| View Angle (L/R/T/B) | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 | |
| Touch Screen | Type | Multi-touch Capacitive | Multi-touch Capacitive | Multi-touch Capacitive |
| Transmittance | >85% | >85% | >85% | |
| Controller | Capacitive Controller | Capacitive Controller | Capacitive Controller | |
| Driver Support | Windows10, Linux | Windows10, Linux | Windows10, Linux | |
| Response Time | <5ms | <5ms | <5ms | |
| Surface Hardness | 7H | 7H | 7H | |
| Environmental | Working Temp | -20~60°C | -20~60°C | -20~60°C |
| Storage Temp | -20~70°C | -20~70°C | -20~70°C | |
| Relative Humidity | 10~90% (No Condensing) | 10~90% (No Condensing) | 10~90% (No Condensing) | |
| Vibration | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | |
| Shock | 10G, 11ms | 10G, 11ms | 10G, 11ms | |
| EMC | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | |
| Waterproof Grade | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | |
