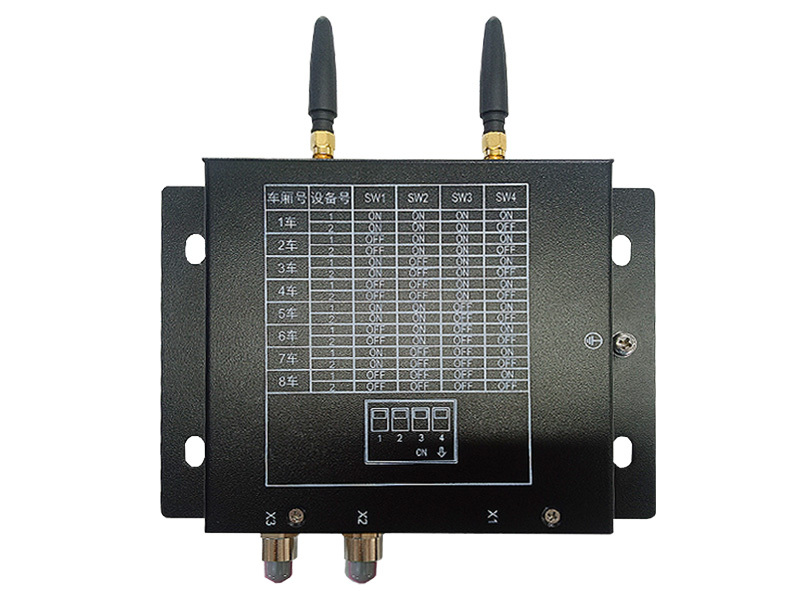

Name: PISS-TGS
Brand: Wuhan Beilian Display Tech Co., Ltd
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Features:

Supports By Pass network cascading technology
Compliant with the EN 50155 testing standard for rail transportation; the board features triple-proof protection
The product incorporates high-quality, wide-temperature-range components to meet the needs of most industries and operating environments.
The software can be customized to support the customer's communication protocol, and batch updates can be performed using the host computer software.
Supports long-term, reliable, and stable operation of dual Linux/Android systems with high security; frequent power cycles will not damage the product's system.
Onboard wireless devices transmit information such as route details, the train’s current station, destination, and direction of travel to relevant operations management software via Wi-Fi and Bluetooth, providing data for mobile apps.

Technical Parameters:

	Item	Specifications
TV Specifications	Processor	Quad-core ARM Cortex-A55 at 2.0 GHz
	Memory	2GB/4GB DDR4 (2GB by default)
	Storage	8GB/16GB/32GB/64GB eMMC (8GB by default)
	Operating System	Linux/Android Linux/Android
	Power connector	Can be customized to meet your needs
	Other Interfaces	M12-D/D-SUB9 (configuration can be customized as needed)
Environmental Parameters	Electromagnetic Compatibility	Complies with EN 50121-3-2 Class A
	Dynamic impact	EN50155-12.2.11 Complies with EN 50155-12.2.11
	Power Input	DC9-36V/DC60- 150V DC 9–36 V / DC 60–150 V
Software Specifications	System Software	A single-chip solution integrating 2.4 GHz Wi-Fi and Bluetooth dual-mode
Software Specifications	Application Software	Supports Bluetooth communication technology Supports Wi-Fi communication technology Supports Ethernet communication Supports custom communication protocols Supports simultaneous configuration and updating of multiple devices Supports custom GPIO
