| Name | Specification | |||
| General Parameters | CPU | Adopt automatic color and image enhancement processor, with optimized image quality and excellent detail display processing performance. | ||
| Power Interface | Customized | |||
| Other Interfaces | HDMI/USB/RS232 IN/RS232OUT / R232(RJ45) | |||
| LCD | Display Size | 86" | ||
| Resolution | 3840×600 | |||
| Max. Color | 1.07G(8bit+FRC) | |||
| Active Area(W×H) | 2148.48X335.7 | |||
| Backlight | LED | |||
| Backlight MTBF(hrs) | 50,000hrs(min.) | |||
| Response Time | 8ms(G to G BW)(typ.) | |||
| Brightness | 500nit(typ. ) | |||
| Contrast Ratio | 1100:1 | |||
| Angle View (L/ R/T/B) | 178°/178° ( Vertical, Horizontal) | |||
| Storage Temp. | -10℃~60℃ | |||
| Working Temp. | 0℃~40℃ | |||
| Protective Panel | Material Type | Normal |AG |AR(optional) | ||
| Light Transmittance | 88 — 89%(Normal) 82-86%(AG) 94-97%(AR) | |||
| Reflectance | 11—12%(Normal) | 3—6%(AG) I 3—6%(AR) | |||
| Surface Hardness | 6H-7H | |||
| Stress | >90Mpa | |||

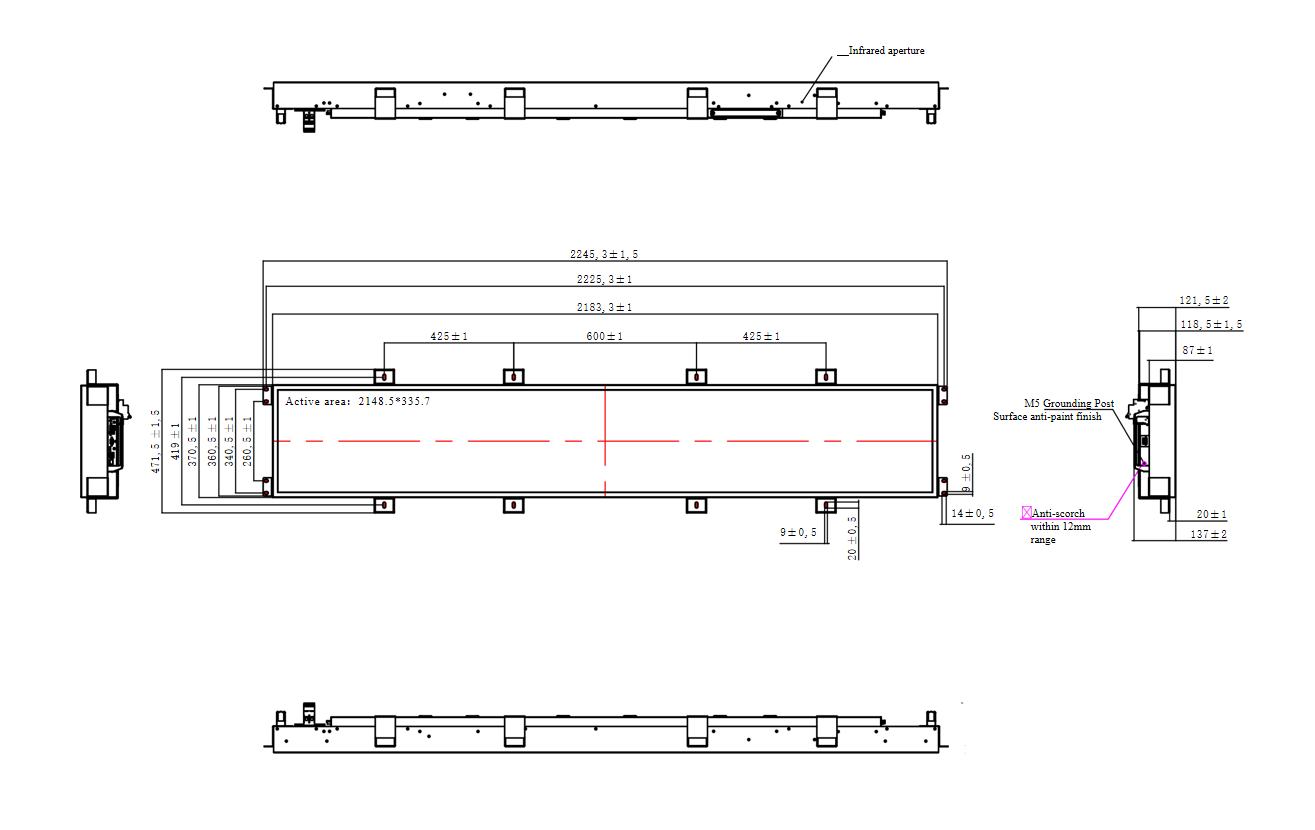

| Overall Size(mm) | 2245.3x471.5x121.5 | |||
| Temperature Resistance | -50℃~300℃ | |||
| Environment Parameter | EMC | Meet EN50121-3-2 A grade standard | ||
| Vibration & Shock | Meet EN50155-12.2.11 | |||
| Power Supply | DC 9~36V/DC 60~150V/AC 90~264V | |||
