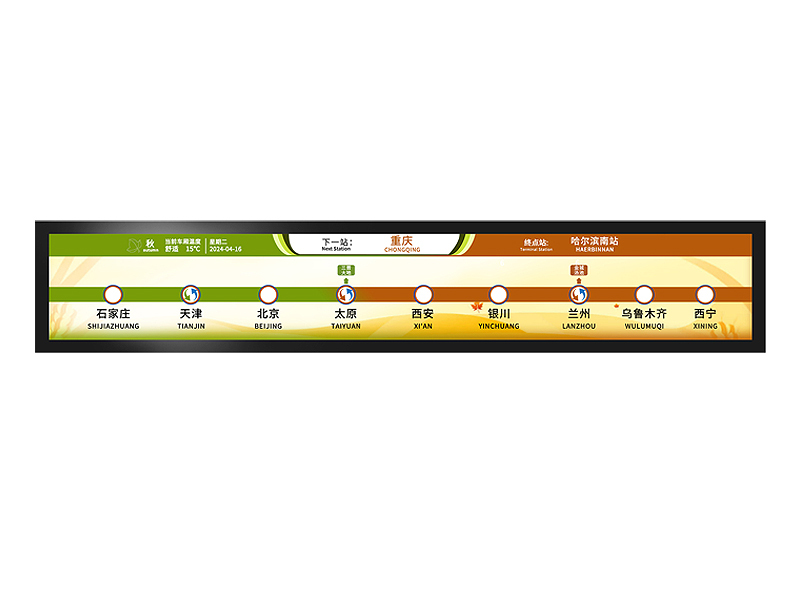

The PISD-DT366 is a 36.6-inch dynamic map display designed for rail transit, delivering durable, high-brightness visuals. As a reliable dynamic map display supplier and manufacturer, it meets EN50155 standards for transit environments.
Product Description
The PISD-DT366 functions as an advanced onboard visualization tool tailored for rail transit operators and system integrators requiring highly reliable dynamic mapping solutions. This dynamic map display manufacturer provides equipment that addresses critical needs such as subway facility localization and passenger density visualization inside train carriages. Its user base includes transit authorities and vehicle OEMs who demand compliance with rail transit testing standards and require seamless integration with control and monitoring systems. As a dynamic map display supplier, Beilian Display offers a product engineered to ensure consistent passenger information delivery even under frequent power cycling in challenging operational environments.
Equipped with a quad-core ARM Cortex A55 processor clocked at 2.0 GHz, the PISD-DT366 supports both Linux and Android operating systems, offering flexibility and software stability essential for long-term deployment. The 36.6-inch display provides a resolution of 1920 × 290 pixels with 16.7 million color depth and 72% NTSC coverage, ensuring vibrant and clear image reproduction. Its ultra-wide viewing angle of 89° from all directions and brightness at 1000 cd/m² improve visibility in harsh lighting conditions. The device’s IP54-rated front panel and tri-proof treated circuit board enhance durability against dust, moisture, and vibration, meeting stringent EN50155 and EN50121-3-2 standards. Customizable communication protocols and interface options enable precise integration with various rail transit systems.
This product serves as a critical component in urban rail transit networks by providing real-time, dynamic display of train carriage status and subway infrastructure conditions. The PISD-DT366 adds operational value by facilitating efficient passenger information flow, improving service quality and safety management. As a reliable dynamic map display manufacturer, Beilian Display’s solution is integrated into over 130 metro lines across multiple countries. Its onboard robustness and certified performance ensure compliance with international transit standards, reducing downtime and maintenance costs. The adaptability of the dynamic map display supports unique transit system requirements, offering scalable deployment for modern intelligent transportation infrastructures.
The PISD-DT366 features a meticulously engineered structure that complies with the EN50155 rail transit standard, ensuring mechanical stability during transit operation stresses. The design incorporates a tri-proof treated circuit board and an IP54-rated front panel, safeguarding against dust and moisture ingress—key factors for long-term reliability in rail environments. Modular customization allows for configurable protective panels such as AG or AR coatings for varied light transmittance and reflectivity, enhancing operational adaptability. Provided by an established dynamic map display manufacturer, this product supports multiple power input ranges and customizable interfaces, facilitating straightforward integration within diverse rail vehicle platforms.
From a performance standpoint, the device delivers consistent high-brightness output and ultra-wide viewing angles to support clear visualization for both passengers and operational staff. Featuring a responsive 11 ms typical response time and a robust processor, the dynamic map display supplier ensures smooth graphical rendering under continuous operation conditions. Supporting both Linux and Android operating systems allows for flexible software deployment and easy upgrades, which is critical in maintaining long-term system stability. These characteristics reduce operational risks and enhance system compatibility, ultimately providing transit operators with a dependable solution that optimizes passenger information dissemination and vehicle monitoring.
| Item | Specifications | |
| Conventional Parameters | Processor | Quad-core ARM Cortex A55, 2.0GHz |
| Memory | 2GB/4GB DDR4 (default 2GB) | |
| Storage | 8GB/16GB/32GB/64GB eMMC (default 8GB) | |
| Operating system | Linux/Android | |
| Power interface | Customizable according to needs | |
| Other interfaces | M12-D/D-SUB9 (Definition can be adjusted as needed) | |
| LCD screen | Screen size | 36.6" |
| Resolution | 1920×290 | |
| Maximum color | 16.7M , 72% NTSC | |
| Display area (W×H) | 919.296×138.852mm | |
| Backlight | WLED | |
| Backlight MTBF (hours) | 50K hrs | |
| Response time | 11(Typ.)(G to G) ms | |
| Brightness | 1000cd/m² | |
| Contrast | 5000∶1 | |
| Viewing angle (L/R/T/B) | 89 / 89 / 89 / 89 | |
| Storage temperature | -20 ~ 60℃ | |
| Operating Temperature | -20 ~ 60℃ | |
| Protective panel | Material Type | Standard | AG | AR (Three options available) |
| Light Transmittance | 88-89% (Regular) | 82-86% (AG) | 94-97% (AR) | |
| Reflectivity | 11-12% (Regular) | 3-6% (AG) | 3-6% (AR) | |
| Surface Hardness | 6H—7H | |
| Stress | ＞90Mpa | |
| Temperature Resistance | -50 ~ 300℃ | |
| Environmental Parameters | Electromagnetic Compatibility | Meets EN50121-3-2 Class A standard. |
| Vibration and Shock | Meets EN50155-12.2.11 | |
| Power Input | DC9~36V/DC60~ 150V/AC90~264V | |
| Software Parameters | System Software | Supports Linux buildroot 4.19 system |
| Application Software | Multimedia Player supports playing network video streams and built-in video files; supports customer-defined communication protocols Adopting front-end and back-end decoupling technology, the rapid iterative development of UI supports simultaneous configuration and upgrade of multiple devices Supports device echo Supports built-in file database Real-time monitoring of CPU, eMMC, and memory information, etc. |
|
