BOX-66XX-2P is a fanless industrial computer equipped with low-power Intel® Core™ 6th, 7th, 8th and 9th generation CPU. It adopts a large-area aluminum fin active cooling solution, which effectively prevents dust intrusion.
It features an attractive appearance, solid durability, compactness and light weight, and can withstand high and low temperatures. The whole machine provides effective anti-static and anti-electromagnetic interference functions, ensuring product reliability and service life, making it suitable for complex and demanding industrial environments.

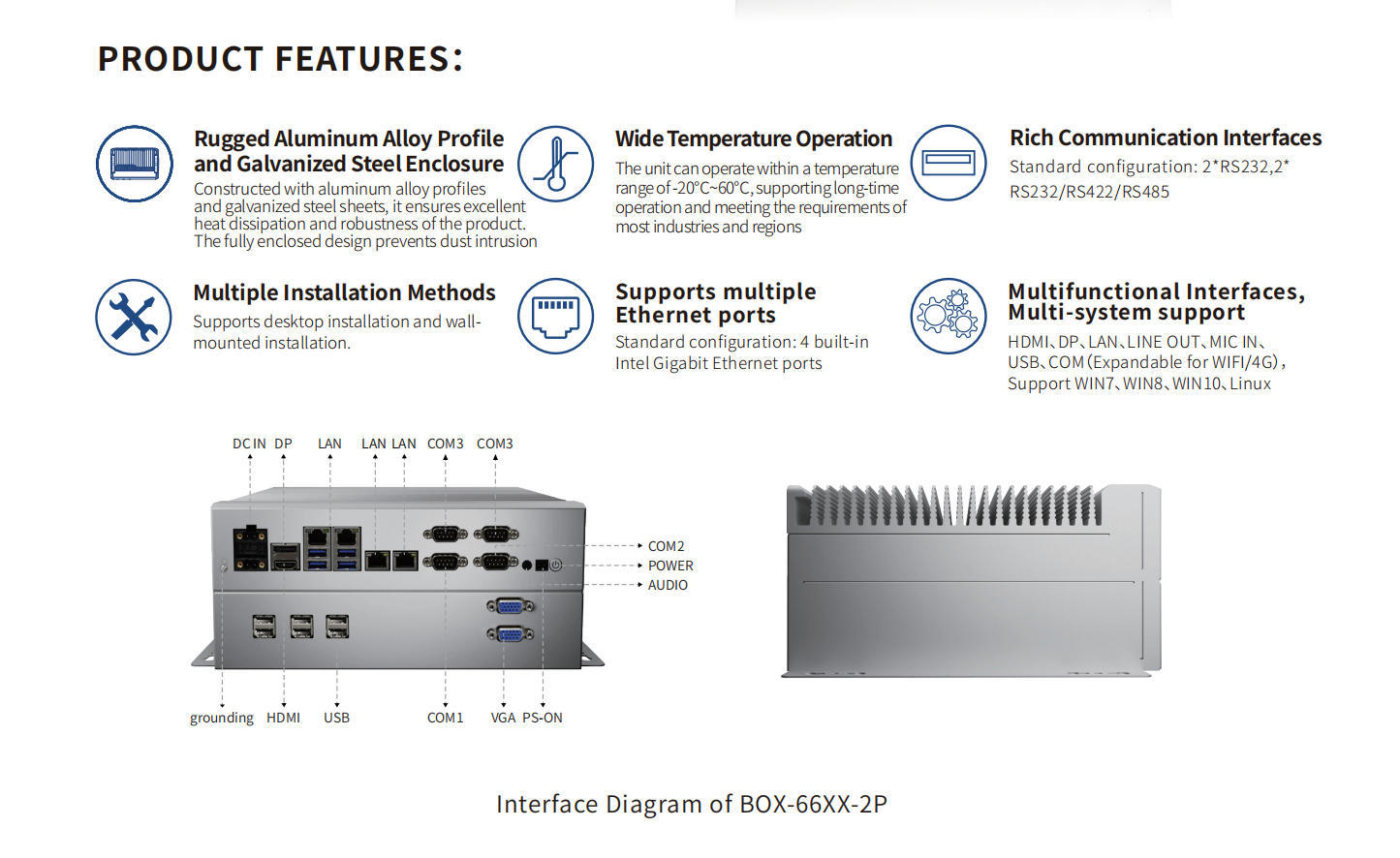

Standard diversified interfaces:

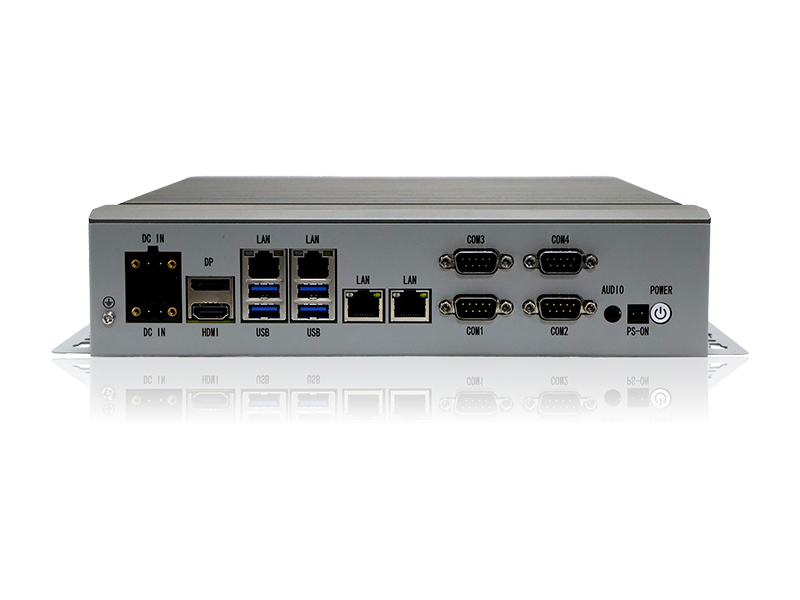

4 Gigabit Ethernet ports, 4×USB3.0, 1×HDMI, 1×DP, 2×RS232, 2×RS232/RS422/RS485,DC 9~36V power input, support for LINE OUT
| Model | BOX-66XX-2P | |
| Processor | CPU | Intel® Core® 6th、7th、8th、9th Gen. CPU |
| Frequency | Depends on the specific CPU model | |
| Frequency | Memory | 2个DDR4 2133/2400/2600MHz，Supports dual-channel memory, with a maximum capacity of 64GB |
| Storage | 1 x M.2 (NGFF protocol) 128GB/256GB/512GB/1TB | |
| Display | DP | Up to 1920*1080 |
| HDMI | Up to 1920*1080 | |
| VGA | — | |
| Dual Display | Supports asynchronous or synchronous dual display | |
| Ethernet | LAN | RJ45*4 |
| Audio | Interface | Line out/Mic in 2-in-1 |
| Serial Port | Serial Port | 2*RS232/RS422/RS485、2*RS232 |
| Expandable Slot | Mini PCI-E | 1 * PCIeX8 |
| M.2 | — | |
| Operating System | Operating System | Win7/Win8/Win10/Linux |
| Power | Power Type | DC |
| Input Voltage | DC 9~36V Input | |
| Power Adapter | DC 24V/10A | |
| Power Consumption | No-load | 85W |
| Full-load | 120W | |
| Mechanical Parameters | Structure | Magnesium-Aluminum Alloy Profile + SGCC Sheet Metal Structure |
| Mounting Method | Supports desktop installation and wall-mounted installation | |
| Dimension | 271.2mm*235mm*169mm | |
| Weight | 4kg | |
| Environmental Parameters | Working Temp | -20~60℃ |
| Storage Temp | -20~70℃ | |
| Relative Humidity | 10~90%(No Condensing) | |
| Vibration | 5~500Hz, 1.5G, 0.15mm | |
| Shock | 10G, Duration: 11ms | |
| EMC | CE/FCC Class B | |
