BOX-66XX is a fanless industrial computer powered by low-power Intel® Core™ 6th, 7th, 8th and 9th generation CPUs. It adopts a large-area aluminum fin active cooling scheme, which effectively prevents dust ingress. It features an elegant appearance, robust durability, compact and lightweight design, and wide temperature resistance. The whole unit is effectively anti-static and anti-elec tromagnetic interference, ensuring product reliability and service life, making it suitable for complex and demanding industrial - environments.

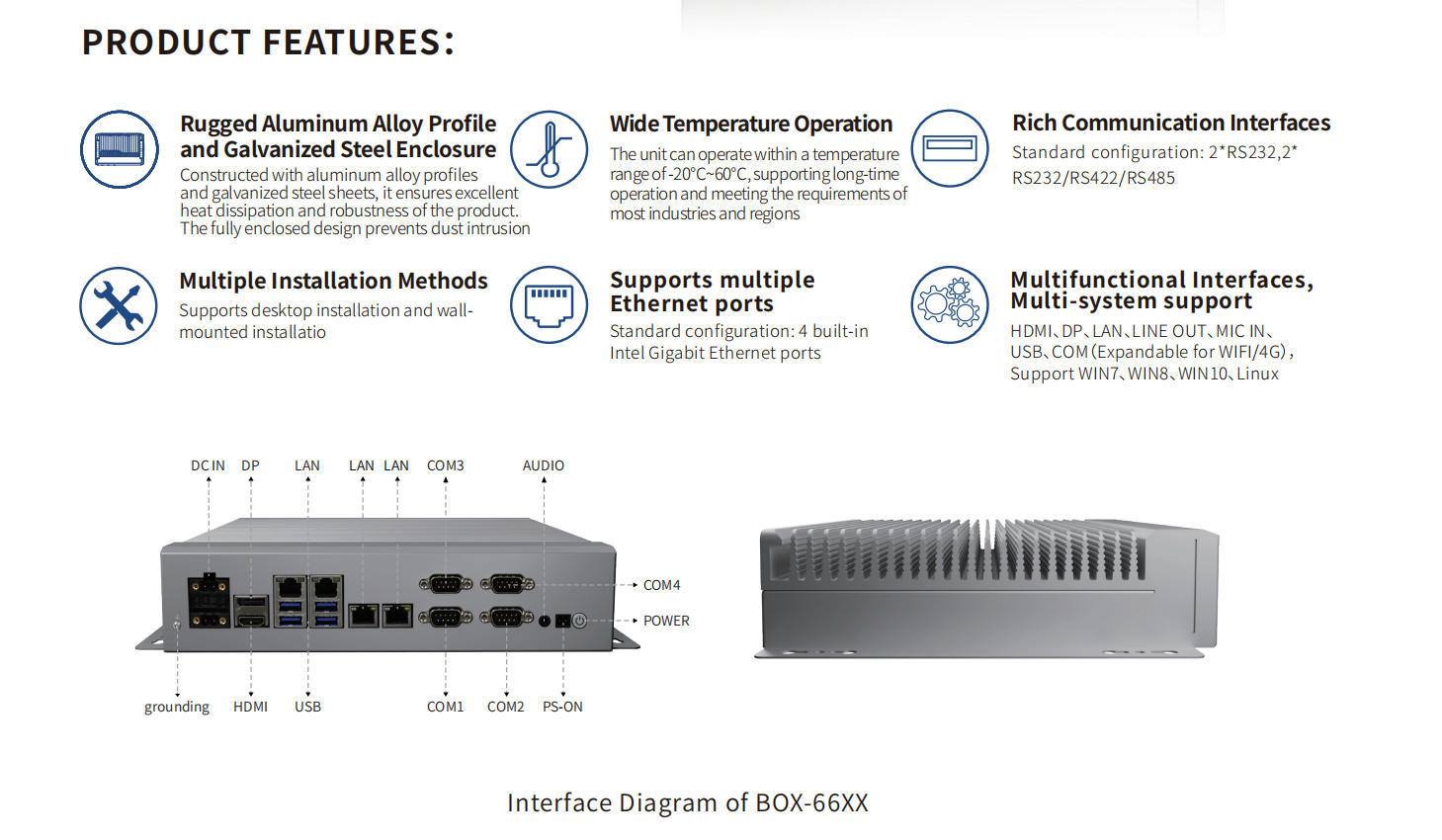

Standard diversified interfaces:

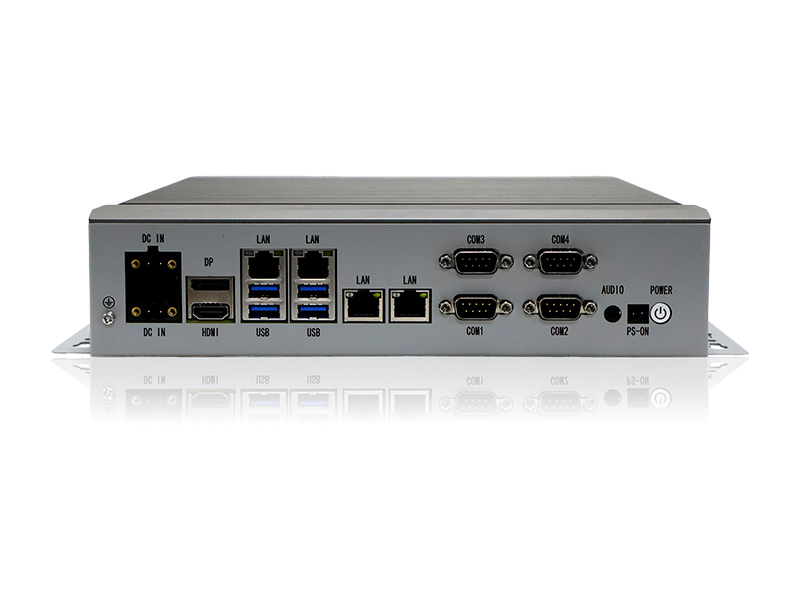

4 Gigabit Ethernet ports, 4×USB3.0, 1×HDMI, 1×DP, 2×RS232, 2×RS232/RS422/RS485,DC 9~36V power input, supporting LINE
| Model | BOX-66XX | |
| Processor | CPU | Intel® Core® 6th、7th、8th、9th Gen. CPU |
| Frequency | Depends on the specific CPU model | |
| Frequency | Memory | 2*DDR4 2133/2400/2600MHz, Supports dual-channel memory, with a maximum capacity of 64GB |
| Storage | 1 x M.2 (NGFF protocol) 128GB/256GB/512GB/1TB | |
| Display | DP | Up to 1920*1080 |
| HDMI | Up to 1920*1080 | |
| VGA | — | |
| Dual Display | Supports asynchronous or synchronous dual display | |
| Ethernet | LAN | RJ45*4 |
| Audio | Interface | Line out/Mic in 2-in-1 |
| Serial Port | Serial Port | 2*RS232/RS422/RS485、2*RS232 |
| Expandable Slot | Mini PCI-E | — |
| M.2 | — | |
| Operating System | Operating System | Win7/Win8/Win10/Linux |
| Power | Power Type | DC |
| Input Voltage | DC 9~36V Input | |
| Power Adapter | DC 24V/10A | |
| Power Consumption | No-load | 85W |
| Full-load | 120W | |
| Mechanical Parameters | Structure | Magnesium-Aluminum Alloy Profile + SGCC Sheet Metal Structure |
| Mounting Method | Supports desktop installation and wall-mounted installation | |
| Dimension | 271.2mm*235mm*169mm | |
| Weight | 4kg | |
| Environmental Parameters | Working Temp | -20~60℃ |
| Storage Temp | -20~70℃ | |
| Relative Humidity | 10~90%(No Condensing) | |
| Vibration | 5~500Hz, 1.5G, 0.15mm | |
| Shock | 10G, Duration: 11ms | |
| EMC | CE/FCC Class B | |
