BOX-5B00 is a fanless industrial computer powered by RK3588 CPU (8-core Cortex-A76+Cortex-A55), featuring large-area aluminum fin active cooling to effectively prevent dust intrusion.
Boasting an elegant appearance, durability, compact design and wide temperature resistance, it also has anti-static and anti-electromagnetic interference functions, ensuring reliable performance and long service life even in harsh industrial environments.

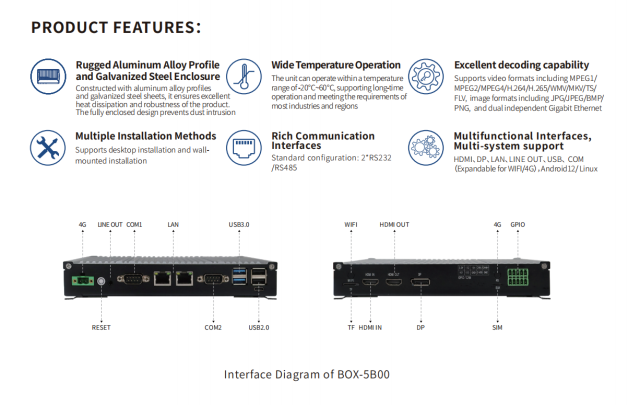

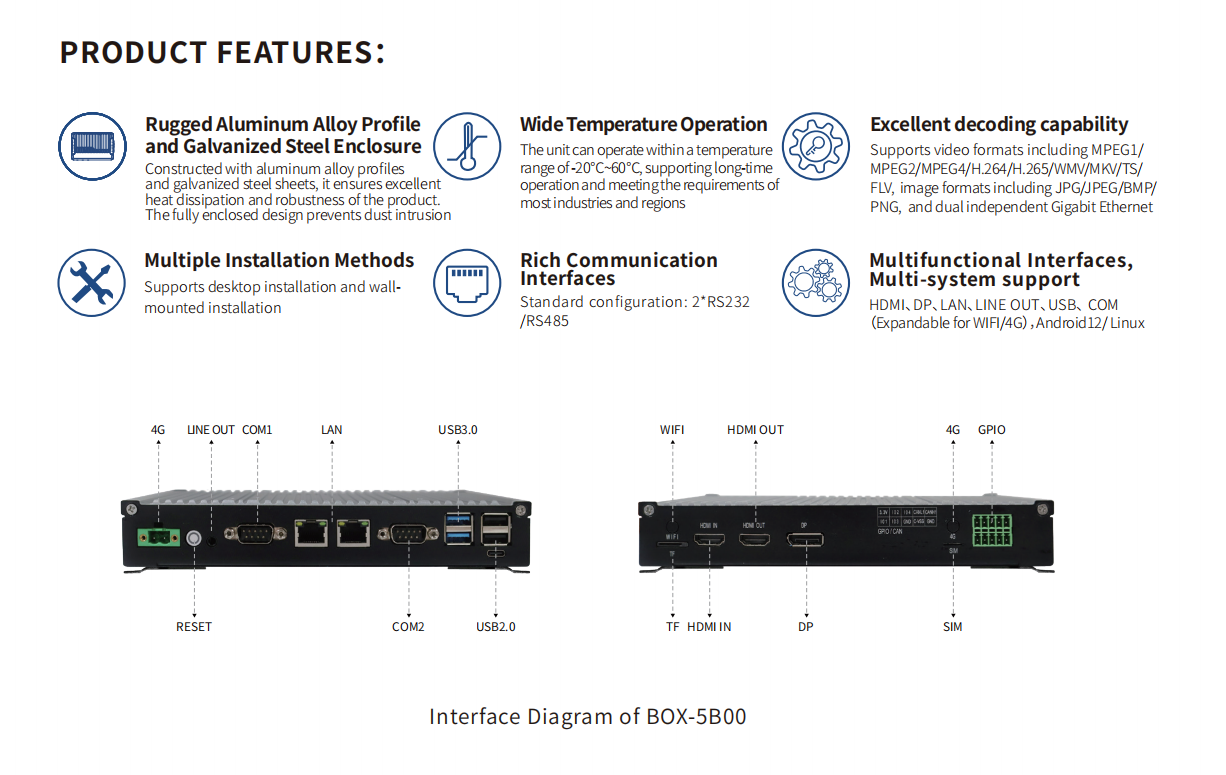

It comes with standard diversified interfaces: 2 Gigabit Ethernet, 4×USB3.0, 1 HDMI IN, 1 HDMI OUT, 1 DP, 2×RS232//RS485 and DC 12V power input, providing a convenient user experience for various industries.
| Model | BOX-5B00 | |
| Processor | CPU | RK3588 CPU 8-core Cortex-A76+Cortex-A55 Processor |
| Frequency | Main Frequency 2.4GHz | |
| Frequency | Memory | support 4GB/8GB/16GB memory |
| Storage | support 32GB/64GB/128GB storage | |
| Display | DP | Up to 1920*1080 |
| HDMI | Up to 1920*1080 | |
| VGA | — | |
| Dual Display | Supports asynchronous or synchronous dual display | |
| Ethernet | LAN | RJ45*2 |
| Audio | Interface | audio 3.5mm*1 |
| Serial Port | Serial Port | RS232/RS485*2 |
| Expandable Slot | Mini PCI-E | — |
| M.2 | — | |
| Operating System | Operating System | Android 12/Linux |
| Power | Power Type | DC |
| Input Voltage | DC 12V Input | |
| Power Adapter | DC 12V/5A | |
| Power Consumption | No-load | 8W |
| Full-load | 20W | |
| Mechanical Parameters | Structure | Magnesium-Aluminum Alloy Profile + SGCC Sheet Metal Structure |
| Mounting Method | Supports desktop installation and wall-mounted installation | |
| Dimension | 210mm*138.5mm*32mm | |
| Weight | 1kg | |
| Environmental Parameters | Working Temp | -20~60℃ |
| Storage Temp | -20~70℃ | |
| Relative Humidity | 10~90%(No Condensing) | |
| Vibration | 5~500Hz, 1.5G, 0.15mm | |
| Shock | 10G, Duration: 11ms | |
| EMC | CE/FCC Class B | |
