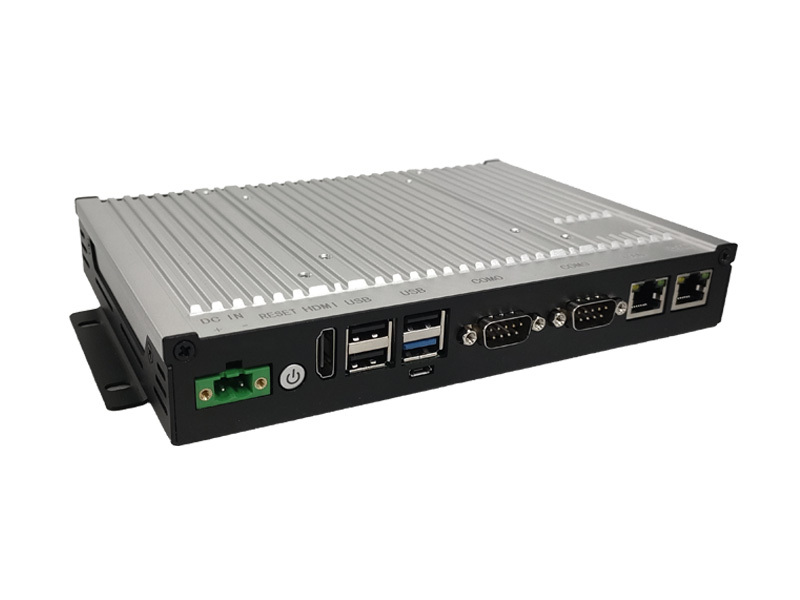

BOX-5A00 is a fanless Android computer powered by a 4-core ARM Cortex-A55 processor, boasting an elegant appearance, durability, compact design and wide temperature resistance.

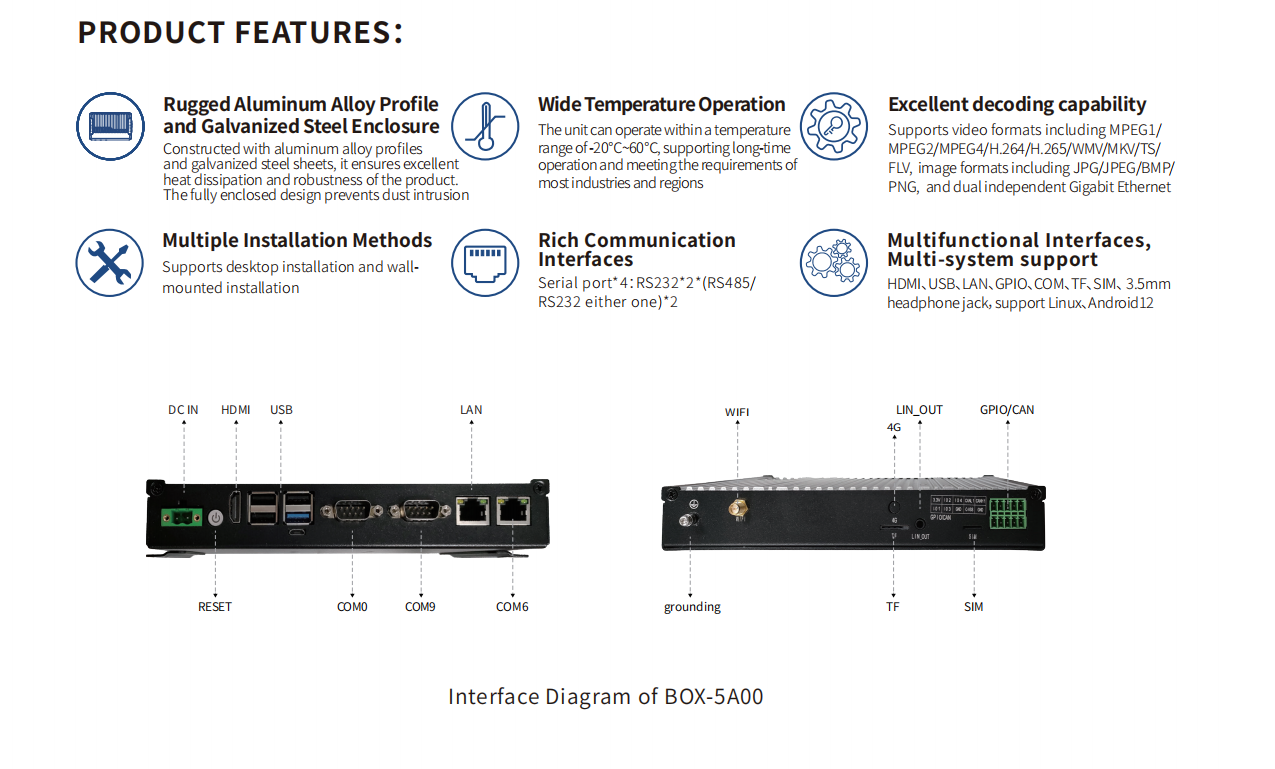

It features effective anti-static and anti-electromagnetic interference functions, ensuring reliable performance and long service life even in relatively complex and harsh environments. It comes with standard diversified interfaces: 2 Gigabit Ethernet ports, USB ports, HDMI/DP display interfaces, 2 RS232 and 2 RS485 serial ports, standard DC 12V power input (with reverse connection protection), and supports AUDIO and GPIO, providing a convenient user experience for various industries
| Model | BOX-5A00 | |
| Processor | CPU | Quad-core ARM Cortex-A55 processor |
| Frequency | 2.0GHz | |
| Frequency | Memory | Support 2G/4G DDR4 Memory |
| Storage | 8GB/16GB/32GB eMMC storage | |
| Display | DP | — |
| HDMI | Up to 1920 * 1080 | |
| VGA | — | |
| Dual Display | Only support synchronous dual display | |
| Ethernet | LAN | Realtek GBE LAN Chip*2 |
| Audio | Interface | Line out |
| Serial Port | Serial Port | RS232 *2 (RS485/RS232 Either one) *2 |
| Expandable Slot | Mini PCI-E | 1 * MiniPCIe card slot (expandable for 4G) |
| M.2 | — | |
| Operating System | Operating System | Linux、Android12 |
| Power | Power Type | AT |
| Input Voltage | DC 12V Input | |
| Power Adapter | AC to DC 12V/5A | |
| Power Consumption | No-load | 15W |
| Full-load | 25W | |
| Mechanical Parameters | Structure | Magnesium-Aluminum Alloy Profile + SGCC Sheet Metal Structure |
| Mounting Method | Supports desktop installation and wall-mounted installation | |
| Dimension | 210mm*138.5mm*32mm | |
| Weight | 2KG | |
| Environmental Parameters | Working Temp | -20~60℃ |
| Storage Temp | -20~70℃ | |
| Relative Humidity | 10~90%(No Condensing) | |
| Vibration | 5~500Hz, 1.5G, 0.15mm | |
| Shock | 10G, Duration: 11ms | |
| EMC | CE/FCC Class B | |
