BOX-2200 is a fanless industrial computer powered by the low-power Intel® Celeron® J6412 processor. It adopts a large-area aluminum fin active cooling solution to effectively prevent dust intrusion, featuring an elegant appearance, durability, compactness, light weight and wide temperature resistance.
The entire unit has effective anti-static and anti-electromagnetic interference capabilities, ensuring product reliability and service life, making it suitable for use in relatively complex and harsh industrial environments.

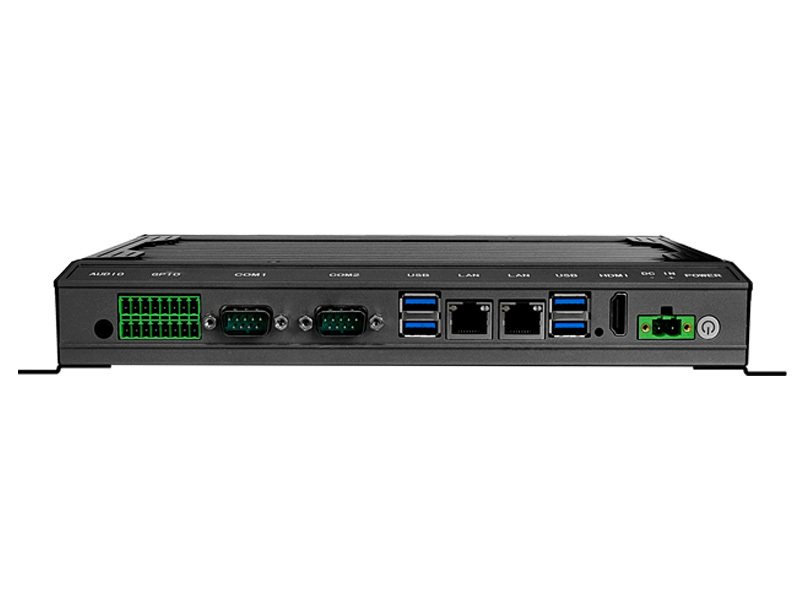

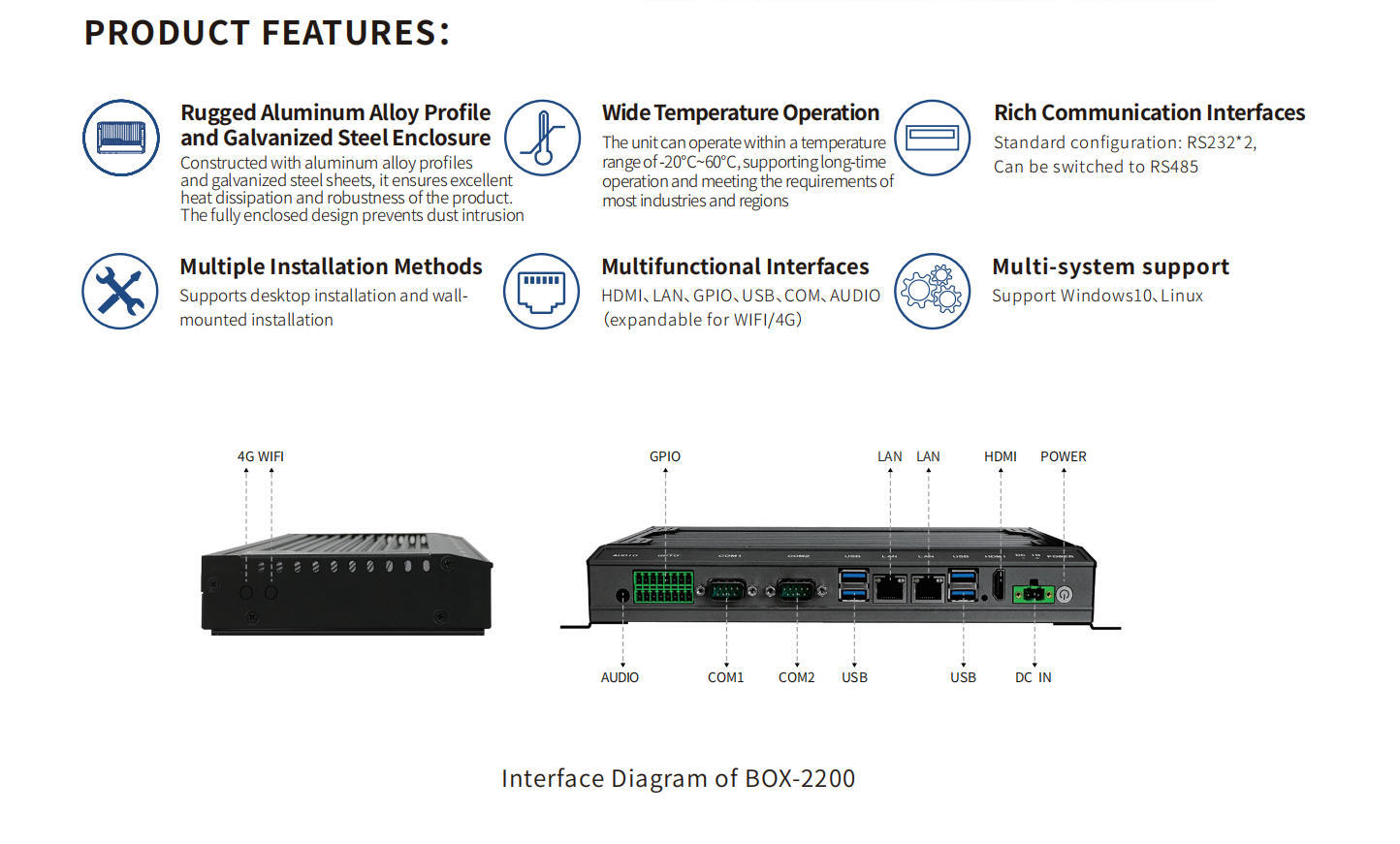

It comes with standard diversified interfaces: 2 Intel Gigabit Ethernet ports, 4 USB ports, an HDMI display interface, 2 RS232 (switchable to RS485), DC 9~36V power input. It also supports GPIO and wireless network, providing a convenient user experience for meeting the needs of different industries.
| Model | BOX-2200 | |
| Processor | CPU | Intel® Celeron® J1900 |
| Frequency | Quad-core 2.4GHZ | |
| Frequency | Memory | DDR3 2G/4G/8G |
| Storage | MSATA 64G/128G/256G/512G | |
| Display | DP | — |
| HDMI | — | |
| VGA | Up to 1920 * 1080 | |
| Dual Display | Not Support | |
| Ethernet | LAN | Realtek GBE LAN Chip*2 |
| Audio | Interface | — |
| Serial Port | Serial Port | 3*RS232 1*RS485 |
| Expandable Slot | Mini PCI-E | 1*MiniPCIe card slot, 1*SIM card slot |
| M.2 | — | |
| Operating System | Operating System | Windows7/Windows8/Windows10/Linux |
| Power | Power Type | AT |
| Input Voltage | DC 12V Input | |
| Power Adapter | AC to DC 24V/10A | |
| Power Consumption | No-load | 11W |
| Full-load | 20W | |
| Mechanical Parameters | Structure | Magnesium-Aluminum Alloy Profile + SGCC Sheet Metal Structure |
| Mounting Method | Supports desktop installation and wall-mounted installation | |
| Dimension | 245mm*157mm*35mm | |
| Weight | 2.05KG | |
| Environmental Parameters | Working Temp | -20~60℃ |
| Storage Temp | -20~70℃ | |
| Relative Humidity | 10~90%(No Condensing) | |
| Vibration | 5~500Hz, 1.5G, 0.15mm | |
| Shock | 10G, Duration: 11ms | |
| EMC | CE/FCC Class B | |
