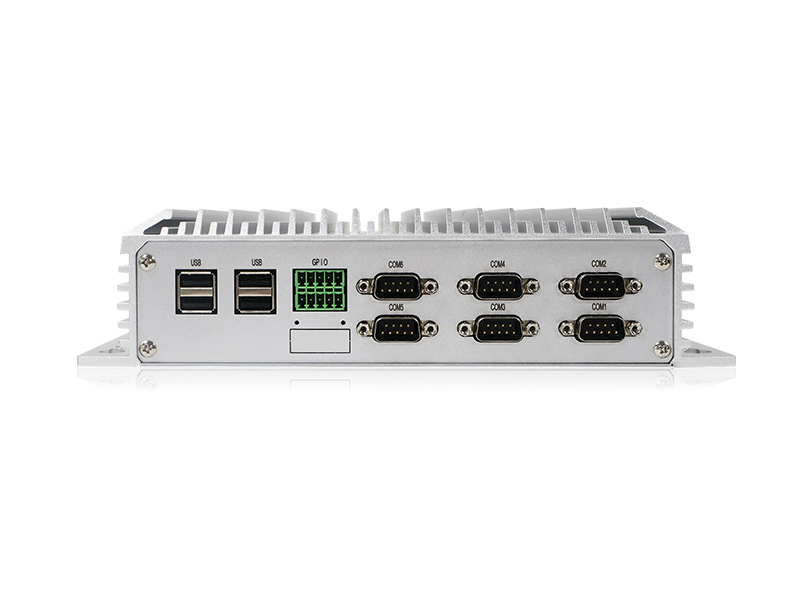

BOX-13A5 is a fanless industrial computer powered by the high-performance Intel® Core™ i5-1035G1 processor. It adopts a large-area aluminum fin active cooling solution to effectively prevent dust intrusion, featuring an elegant appearance, durability, compactness, light weight and wide temperature resistance.The entire unit has effective anti-static and anti-electromagnetic interference capabilities, ensuring product reliability and service life, making it suitable for use in relatively complex and harsh industrial environments.

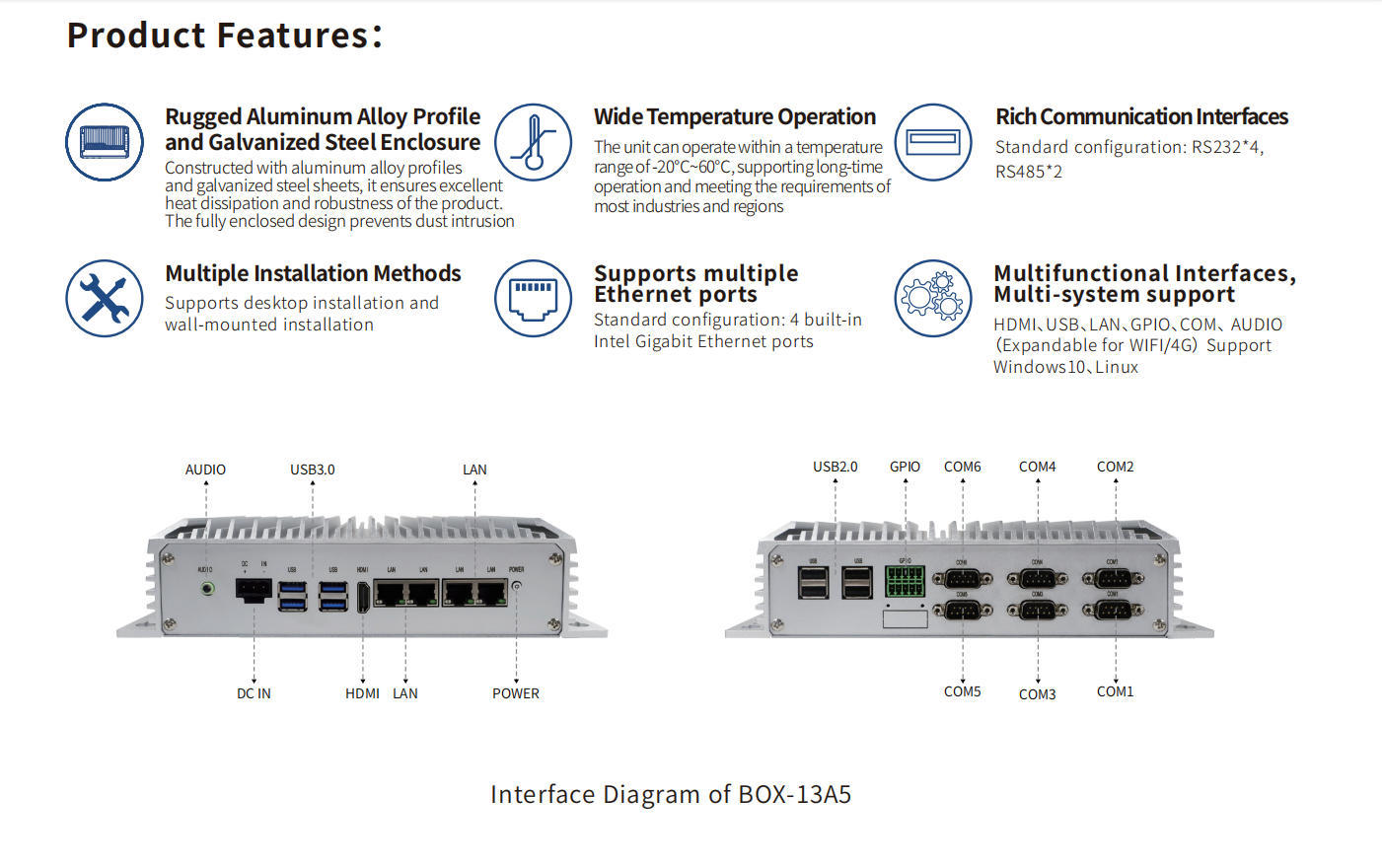

It comes with standard diversified interfaces: 4 Intel Gigabit Ethernet ports, 8 USB ports, an HDMI display interface, 4 RS232 and 2 RS485 serial ports, supporting wide-range DC 12~24V and standard DC 12V power input (with reverse connection protection). It also supports AUDIO and GPIO, providing a convenient user experience for meeting the needs of different industries.
| Model | BOX-13A5 | |
| Processor | CPU | Intel core I5 10U46-1035G1 |
| Frequency | 3.0GHz | |
| Frequency | Memory | DDR4-3200MHz up to 32GB |
| Storage | M.2 NVME(128G/256G/512G/1TB) | |
| Display | DP | — |
| HDMI | Up to 4096*2160 | |
| VGA | — | |
| Dual Display | Not support | |
| Ethernet | LAN | LAN *4 |
| Audio | Interface | Line out |
| Serial Port | Serial Port | RS232*4、RS485*2 |
| Expandable Slot | Mini PCI-E | 1*Mini-PCIe card slot, Expandable for WIFI/4G |
| M.2 | 1 | |
| Operating System | Operating System | Win10/Win11/Linux |
| Power | Power Type | DC |
| Input Voltage | DC 12V~24V Input | |
| Power Adapter | DC 12V/5A | |
| Power Consumption | No-load | 20W |
| Full-load | 40W | |
| Mechanical Parameters | Structure | Magnesium-Aluminum Alloy Profile + SGCC Sheet Metal Structure |
| Mounting Method | Supports desktop installation and wall-mounted installation | |
| Dimension | 248.9mm × 157.5mm × 60mm | |
| Weight | 2.0kg | |
| Environmental Parameters | Working Temp | -20~60℃ |
| Storage Temp | -20~70℃ | |
| Relative Humidity | 10~90%(No Condensing) | |
| Vibration | 5~500Hz, 1.5G, 0.15mm | |
| Shock | 10G, Duration: 11ms | |
| EMC | CE/FCC Class B | |
