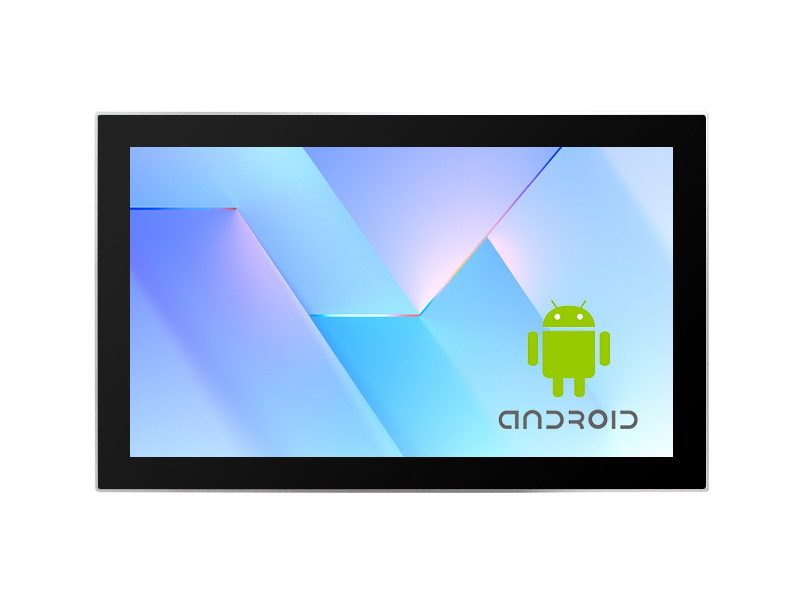

The ARM-L9XXXA Series Android Tablets feature capacitive touch design as the core, equipped with a fanless and silent structure, deeply integrating cutting-edge technology and industrial-grade reliability. Their front panels adopt full lamination technology. The ultra-slim body not only presents a simple and elegant appearance but also achieves an IP65 protection rating, which effectively resists dust ingress and oil contamination, keeping the interior clean from the source.
The unit is robust, durable, compact and lightweight, and maintains stable operation even in complex environments with alternating high and low temperatures. Meanwhile, it features excellent anti-static and anti-electromagnetic interference capabilities, comprehensively enhancing equipment reliability and greatly extending service life, making it capable of handling various harsh scenarios. In terms of performance, the series is equipped with RK-series low-power processors, ensuring efficient operation while saving energy. It also comes standard with multi-functional interfaces, flexibly adapting to the connection requirements of different industries and providing users with a convenient and smooth operating experience.
It is a reliable choice combining attractive appearance and strong performance for complex environments.
| Model | ARM-L9101A | ARM-L9116A | ARM-L9133A | ARM-L9156A | ARM-L9185A | ARM-L9215A | |
| System Parameters | CPU | Quad-core ARM Cortex-A55 processor | Quad-core ARM Cortex-A55 processor | Quad-core ARM Cortex-A55 processor | Quad-core ARM Cortex-A55 processor | Quad-core ARM Cortex-A55 processor | Quad-core ARM Cortex-A55 processor |
| Main Frequency | 2.0GHz | 2.0GHz | 2.0GHz | 2.0GHz | 2.0GHz | 2.0GHz | |
| Memory | Supports 2G/4G DDR RAM | Supports 2G/4G DDR RAM | Supports 2G/4G DDR RAM | Supports 2G/4G DDR RAM | Supports 2G/4G DDR4 RAM | Supports 2G/4G DDR4 RAM | |
| Storage | 32GB eMMC Memory | 32GB eMMC Memory | 32GB eMMC Memory | 32GB eMMC Memory | 32GB eMMC Memory | 32GB eMMC Memory | |
| Decoding Performance | Supports video formats including MPEG1/MPEG2/MPEG4/H.264/H.265/MKV/TS/FLV, and image formats including JPG/JPEG/BMP/PNG | Supports video formats including MPEG1/MPEG2/MPEG4/H.264/H.265/MKV/TS/FLV, and image formats including JPG/JPEG/BMP/PNG | Supports video formats including MPEG1/MPEG2/MPEG4/H.264/H.265/MKV/TS/FLV, and image formats including JPG/JPEG/BMP/PNG | Supports video formats including MPEG1/MPEG2/MPEG4/H.264/H.265/MKV/TS/FLV, and image formats including JPG/JPEG/BMP/PNG | Supports video formats including MPEG1/MPEG2/MPEG4/H.264/H.265/WMV/MKV/TS/FLV, and image formats including JPG/JPEG/BMP/PNG | Supports video formats including MPEG1/MPEG2/MPEG4/H.264/H.265/WMV/MKV/TS/FLV, and image formats including JPG/JPEG/BMP/PNG | |
| Interface | Network | RJ45*2 | RJ45*2 | RJ45*2 | RJ45*2 | RJ45*2 | RJ45*2 |
| USB | USB3.0*1、USB2.0*1 | USB3.0*1、USB2.0*1 | USB3.0*1、USB2.0*1 | USB3.0*1、USB2.0*1 | USB3.0*1、USB2.0*1 | USB3.0*1、USB2.0*1 | |
| Serial Port | RS232*1、RS485*1 | RS232*1、RS485*1 | RS232*1、RS485*1 | RS232*1、RS485*1 | RS232*1、RS485*1 | RS232*1、RS485*1 | |
| Other Interfaces | DC IN、WIFI | DC IN、WIFI | DC IN、WIFI | DC IN、WIFI | DC IN、WIFI | DC IN、WIFI | |
| Physical Features | Dimension(W×H×D) | 262.3mm×180.9mm×18mm | 301.7mm×191mm×18mm | 339.1mm×224.2mm×18mm | 388.4mm×237.6mm×18mm | 454.3mm×296.8mm×18mm | 526.2mm×317.7mm×18mm |
| Cutout Dimension(W×H) | 248mm×166mm | 287mm×177mm | 324mm×210mm | 374mm×224mm | 440mm×282mm | 511mm×308mm | |
| Mounting Method | Embedded & VESA Mounting | Embedded & VESA Mounting | Embedded & VESA Mounting | Embedded & VESA Mounting | Embedded & VESA Mounting | Embedded & VESA Mounting | |
| Cooling Method | Fanless Cooling | Fanless Cooling | Fanless Cooling | Fanless Cooling | Fanless Cooling | Fanless Cooling | |
| Net Weight | 1.4KG | 1.52KG | 1.7KG | 2.2KG | 3KG | 5KG | |
| Power | Power Input | DC 12V Input | DC 12V Input | DC 12V Input | DC 12V Input | DC 12V Input | DC 12V Input |
| Power Consumption | 12W | 13W | 15W | 16W | 20W | 18W | |
| Operating System | Operating System | Linux、Android12 | Linux、Android12 | Linux、Android12 | Linux、Android12 | Linux、Android12 | Linux、Android12 |
| LCD | Screen Type | 10.4" XGA TFT | 11.6" FullHD TFT | 13.3" FullHD TFT | 15.6" FullHD TFT | 18.5" Full HD TFT | 21.5" Full HD TFT |
| Resolution | 1280×800 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | |
| Max. Color | 16.7MB | 16.7MB | 16.7MB | 16.7MB | 16.7MB | 16.7MB | |
| Active Area(W×H) | 217mm×135.6mm | 256.3mm×144.2mm | 293.8mm×165.2mm | 345.2mm×194.6mm | 409mm×230mm | 477.1mm×268.8mm | |
| Backlight | WLED | WLED | WLED | WLED | WLED | WLED | |
| Pixel Pitch | 0.1695×0.1695 | 0.1335×0.1335 | 0.051×0.153 | 0.17925×0.17925 | 0.213×0.213 | 0.08265×0.24795 | |
| Brightness | 500cd/m² | 350cd/m² | 350cd/m² | 400cd/m² | 300cd/m² | 250cd/m² | |
| Contrast Ratio | 1300:1 | 1000:1 | 1200:1 | 1000:1 | 1000:1 | 1000:1 | |
| View Angle(L/R/T/B) | 85/85/85/85 | 89/89/89/89 | 85/85/85/85 | 85/85/85/85 | 89/89/89/89 | 89/89/89/89 | |
| Touch Screen | Touch Screen Type | Multi-touch Capacitive screen | Multi-touch Capacitive screen | Multi-touch Capacitive screen | Multi-touch Capacitive screen | Multi-touch Capacitive screen | Multi-touch Capacitive screen |
| Transmittance | >85% | >85% | >85% | >85% | >85% | >85% | |
| Controller | Capacitive Touch Controller | Capacitive Touch Controller | Capacitive Touch Controller | Capacitive Touch Controller | Capacitive Touch Controller | Capacitive Touch Controller | |
| Driver Support | Linux, Android12 | Linux, Android12 | Linux, Android12 | Linux, Android12 | Linux, Android12 | Linux, Android12 | |
| Response Time | <5ms | <5ms | <5ms | <5ms | <5ms | <5ms | |
| Surface Hardness | 7H | 7H | 7H | 7H | 7H | 7H | |
| Environmental Parameters | Working Temp | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Storage Temp | -20~70℃ | -20~70℃ | -20~70℃ | -20~70℃ | -20~70℃ | -20~70℃ | |
| Relative Humidity | 10~90%(No Condensing) | 10~90%(No Condensing) | 10~90%(No Condensing) | 10~90%(No Condensing) | 10~90%(No Condensing) | 10~90%(No Condensing) | |
| Vibration | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | 5~500Hz,1.5G,0.15mm | |
| Shock | 10G, Duration:11ms | 10G, Duration:11ms | 10G, Duration:11ms | 10G, Duration:11ms | 10G, Duration:11ms | 10G, Duration:11ms | |
| EMC | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B | |
| Waterproof Grade | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating | Front panel complies with IP65 protection rating |
