Company Overview

Founded in 2011, BEILIAN DISPLAY is a national high-tech enterprise specializing in the R&D, production, and sales of intelligent industrial display products. Headquartered in Beijing with branches across 10 major Chinese cities including Shanghai, Shenzhen, Wuhan, and Chengdu, the company operates a 10,000㎡ R&D and production base equipped with independent supporting ecological chains.

With over a decade of dedicated expertise in industrial display technology, BEILIAN DISPLAY has established itself as a trusted provider of robust display solutions for the demanding rail transit industry, serving metro systems, light rail networks, suburban railways, and tram systems worldwide.

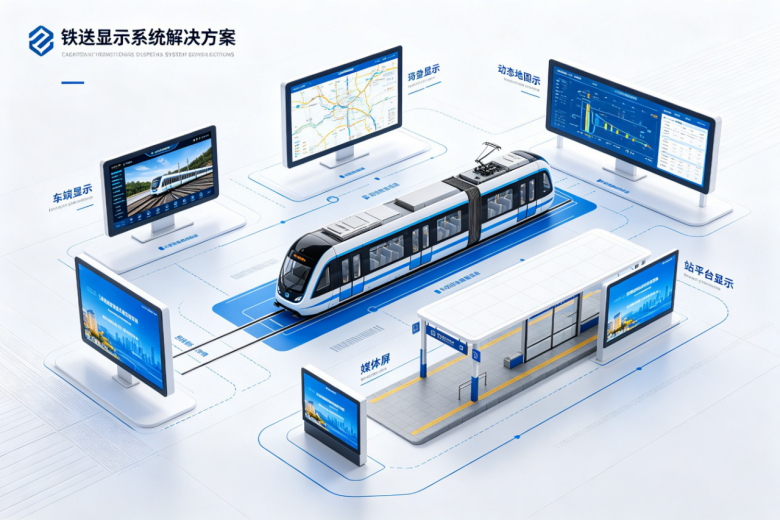

Figure 1: BEILIAN DISPLAY Integrated Rail Transit Display Solution Ecosystem

Industry Proven Track Record

BEILIAN DISPLAY's rail transit product line represents a meticulously crafted portfolio of onboard and platform solutions that deeply integrate technological innovation with user-centric design. Through stable quality performance and exceptional adaptability, the company has earned the trust of rail operators across global markets:

• 7 countries with successful deployments
• 20+ provinces across China
• 29 cities served nationwide
• 124+ metro lines illuminated with BEILIAN display technology

Each station and train deployment stands as a testament to BEILIAN DISPLAY's relentless efforts in advancing smart rail transit construction and delivering reliable passenger information systems.

Comprehensive Product Portfolio

BEILIAN DISPLAY offers a complete one-stop product ecosystem covering both onboard vehicle systems and station platform systems, enabling customers to source all display requirements from a single trusted supplier.

1. Onboard Vehicle Display Series

Cab Monitoring Display (PISD-MC Series)

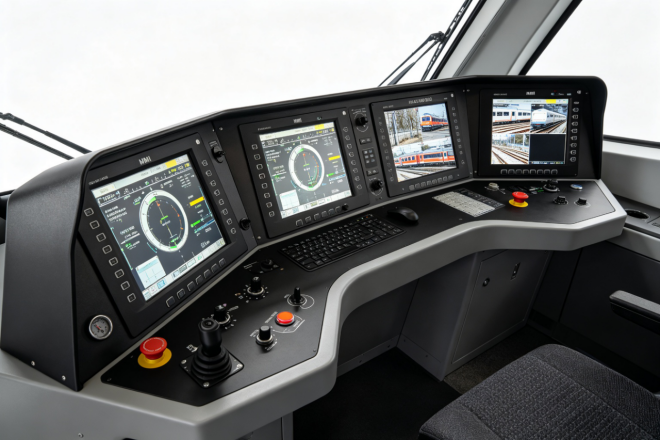

 Figure 2: EN50155 Certified Driver Cab Monitoring Display System

• Model: PISD-MC550 (5.5-inch cab display)
• Designed for driver cabin operation and monitoring
• Provides real-time vehicle status, CCTV feeds, and operational data
• Compliant with rigorous railway vibration and shock standards
• High-brightness display for clear visibility under all lighting conditions

Dynamic Map Display (PISD-DT Series)

Models: PISD-DT280 (28"), PISD-DT290 (29"), PISD-DT366 (36.6"), PISD-DT427 (42.7"), PISD-DT430-4K (43" 4K), PISD-DT485-4K (48.5" 4K)

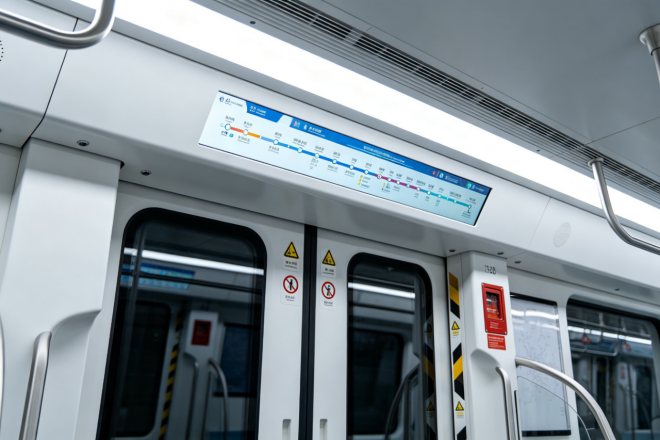

Figure 3: Ultra-Wide Stretched Bar Dynamic Map Display in Carriage

• Ultra-wide stretched bar LCD design for seamless car installation
• Real-time station information, route maps, and arrival announcements
• Passenger congestion visualization for carriages
• Subway facility location indicators
• Customized interface display support

Poster & Media Display Series

Models: PISD-HB270 (27" poster display), PISD-MJ320 (32" media display), PISD-MT156 (15.6"), PISD-MT170 (17")

• High-definition advertising and public information displays
• Vivid color reproduction with wide viewing angles
• Supports mixed media content: video, images, text announcements
• Slim profile design for aesthetic integration with carriage interiors

Special-Shaped Screens

Custom form factors including:

• Magic Mirror displays
• Window-integrated screens
• Gangway V-shaped displays for inter-car connections
• Tailored dimensions to match unique vehicle interior architectures

Broadcast Control Server (CZ-BKXU Series)

• Centralized broadcasting and content management unit
• Model: CZ-BKXU broadcast control server
• PISS-TGS dedicated metro trunk server
• Manages all onboard display content distribution
• Integrated audio announcement system control
• Network redundancy and failover capabilities

2. Station Platform Product Series

Platform Passenger Information Displays

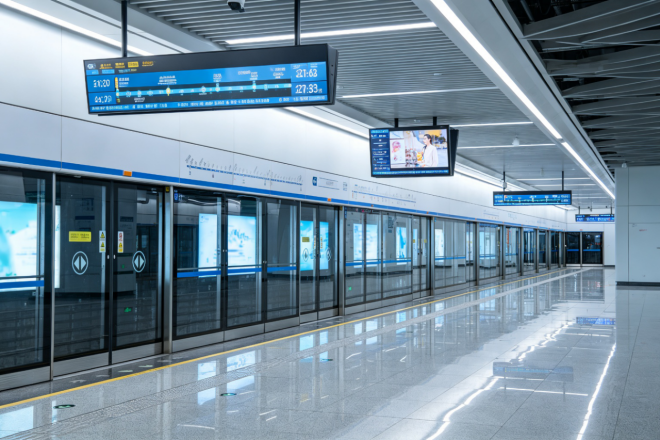

Figure 4: Modern Metro Platform with Integrated Passenger Information System

• Large-format displays for platform waiting areas
• Real-time train arrival countdowns
• Service announcements and emergency notifications
• Multi-language support for international passengers

Platform Screen Door (PSD) Integrated Displays

Models: DM-BKN10 X86 broadcast control box, DM-BKOPS OPS broadcast control box

• Displays integrated directly into platform screen doors
• Door status indicators and safety warnings
• Synchronized with train arrival systems
• Compact industrial-grade design for reliable 24/7 operation

Technical Excellence & Certifications

All BEILIAN DISPLAY rail transit products are engineered to meet the most stringent railway industry standards:

Industry Standard Compliance

• EN50155 certified: Fully meets international rail transit electronic equipment testing standards
• IP54 front panel protection: Dust and splash resistant for demanding environments
• Conformal coating (tri-proof treatment): Circuit boards protected against moisture, mold, and salt spray

Environmental Durability

• Wide operating temperature range: Reliable performance from -30°C to +70°C
• Exceptional vibration and shock resistance: Designed to withstand constant rail movement
• EMC/EMI protection: Full electromagnetic compatibility to prevent system interference
• Power interruption resilience: Frequent power outages and power-ups will not damage the system

Display Performance

• Ultra-wide viewing angles: Clear visibility from all passenger positions
• Long backlight lifespan: 50,000+ hours MTBF for reduced maintenance
• High brightness with anti-glare treatment: Readable in both dark tunnels and bright sunlight
• 7M colors, 72% NTSC color gamut: Vibrant, accurate color reproduction

Processing & System Architecture

• Quad-core ARM Cortex-A55 processor @ 2.0GHz (PISD-DT series)
• Memory options: 2GB/4GB DDR4 (default 2GB)
• Storage: 8GB/16GB/32GB/64GB eMMC (default 8GB)
• Dual operating system support: Linux / Android for flexible deployment
• Long-term stable operation: High security architecture prevents system corruption

Networking & Connectivity

• By-Pass network cascading technology: Ensures continuous network operation even if individual displays fail
• M12-D/D-SUB9 industrial connectors: Vibration-resistant connections
• Customizable power interfaces: Adaptable to different vehicle power systems (24V/48V/72V/110V DC)
• Rich I/O options: HDMI, DP, Ethernet, USB, and audio interfaces

Solution Advantages

1. One-Stop Procurement

BEILIAN DISPLAY provides complete product coverage from onboard cab displays to platform information screens, eliminating the complexity of multi-vendor integration and ensuring system compatibility across the entire passenger information ecosystem.

2. Uncompromising Reliability

• Dual operating system architecture ensures years of maintenance-free operation
• Industrial-grade components selected specifically for railway environments
• Comprehensive protection mechanisms against power surges, voltage fluctuations, and electrical transients
• Proven field reliability across 124+ metro lines

3. Flexible Customization

• Protocol adaptation: Software customized to match customer communication protocols (TETRA, CBTC, PIS standards)
• Batch upgrade capability: Host computer software enables remote mass firmware updates across entire fleets
• Mechanical customization: Custom mounting brackets, enclosure designs, and form factors available
• Interface flexibility: Power and connectivity interfaces tailored to specific vehicle requirements

4. Future-Ready Design

• Modular architecture supports easy upgrades and expansion
• 4K resolution options available for premium deployments
• Scalable from single-car to entire-train network configurations
• Supports integration with AI-powered passenger analytics and crowd management systems

Application Scenarios

BEILIAN DISPLAY solutions are deployed across the full spectrum of rail transit applications:

Conclusion

As a leading Chinese industrial display manufacturer with proven rail transit expertise, BEILIAN DISPLAY combines rigorous engineering, comprehensive product coverage, and customer-centric customization to deliver display solutions that meet the exacting demands of modern rail transportation.

With a track record spanning 7 countries and 124+ metro lines, BEILIAN DISPLAY continues to advance smart rail transit through innovative display technology that enhances passenger experience, improves operational efficiency, and delivers reliable performance in the most challenging railway environments.

Contact BEILIAN DISPLAY for customized rail transit display solutions tailored to your specific project requirements.
